Assorted Power Diode Set
Assorted Power Diode Set

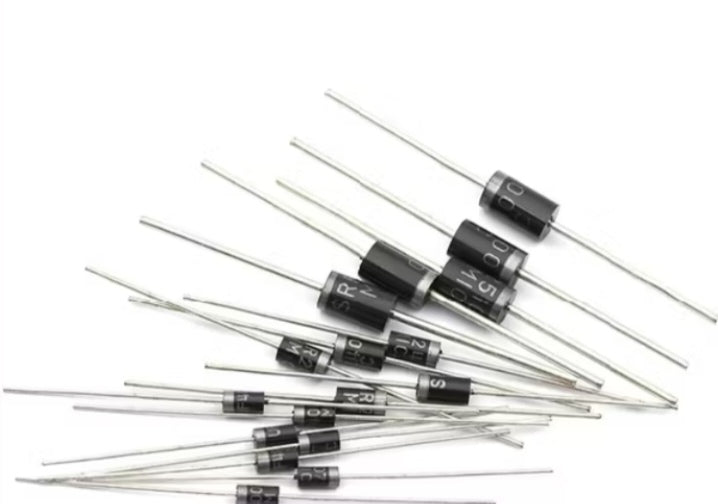

This Comprehensive Power Diode Assortment Kit includes a full selection of high-performance rectifier diodes, from small signal rectifiers to high-current fast recovery diodes. Perfect for electronics repair, DIY projects, prototyping, and circuit design, this set provides a reliable solution for rectification, reverse polarity protection, voltage clamping, and flyback diode applications.
With popular models such as 1N4001 to 1N4007, 1N5404, 1N5408, 6A10, 10A10, 20A10, and fast recovery Schottky diodes like 1N5818, 1N5819, and SR5200, you’ll always have the right component at your fingertips—whether you're working on power supplies, motor drivers, or automotive electronics.
Key Features:
Wide Range of Diode Types: Includes general-purpose, high-current, and Schottky diodes
Standard Rectifiers: 1N4001–1N4007 (1A), 1N5404 / 1N5408 (3A), 6A10 / 10A10 / 20A10 (6A–20A)
Fast Recovery Diodes: 1N5818, 1N5819, SR5200 for high-speed switching and low forward voltage drop
Reliable and Durable: High surge capability and consistent performance across all models
Clearly Labeled & Sorted: Easy identification for quick selection in your toolbox or bench setup
Included Diodes (may vary slightly by kit version):
1N4001 – 1N4007: 1A / 50V–1000V general-purpose rectifiers
1N5404, 1N5408: 3A / 400V–1000V heavy-duty rectifiers
6A10, 10A10, 20A10: High-current 6A–20A diodes for demanding applications
1N5818, 1N5819: 1A Schottky diodes with low voltage drop
SR5200: 5A / 200V Schottky rectifier diode for high-speed switching
