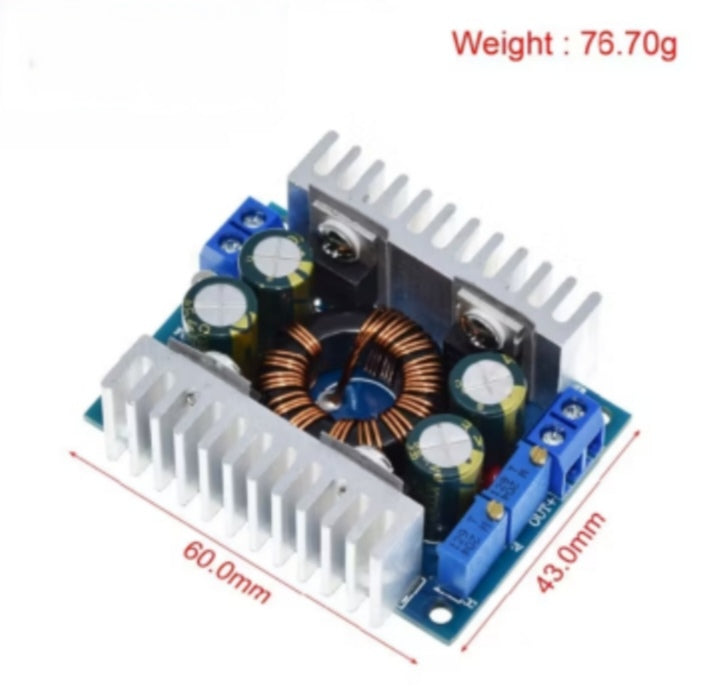

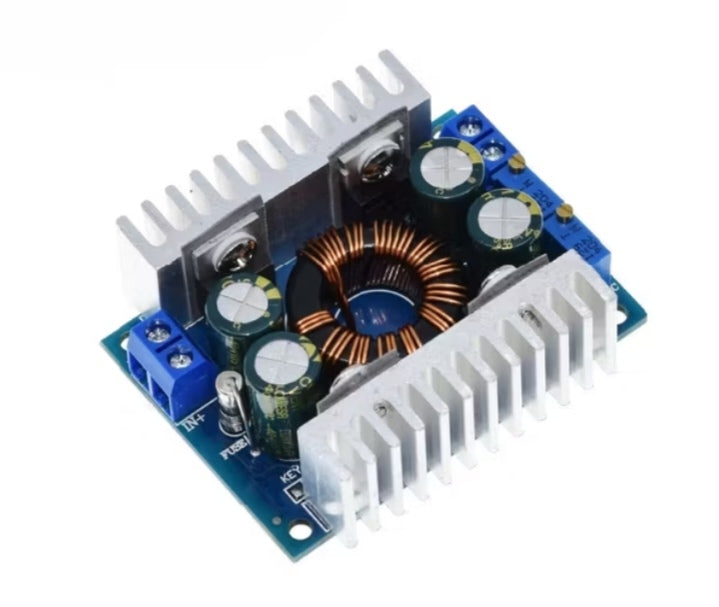

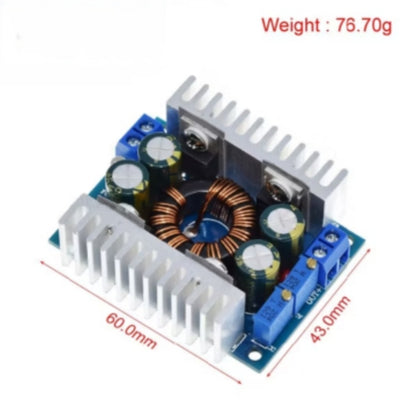

Automatic Buck-Boost Converter Module
Automatic Buck-Boost Converter Module
Automatic Step-Up/Step-Down Converter Module is a powerful and flexible voltage regulation solution designed for DIY electronics, battery-powered systems, and custom power supply projects. This intelligent boost-buck (buck-boost) converter automatically adjusts to maintain a stable output voltage whether the input voltage is higher or lower than the desired output — no manual switching needed.
With support for up to 8A output current, this module can handle high-power loads efficiently and is perfect for powering devices such as LED strips, battery chargers, small motors, and embedded systems.
Key Features:
Automatic Boost & Buck Function: Seamlessly steps voltage up or down based on input-output requirements.
Wide Input Voltage Range: Accepts 5V to 30V DC input.
Adjustable Output Voltage: Precisely set your desired output between 1.25V to 30V DC using the onboard potentiometer.
High Current Output: Delivers up to 8A output current (with heat sink and cooling).
High Efficiency: Up to 95% efficiency depending on voltage and load.
Protection Features: Built-in over-temperature, over-current, and short-circuit protection.
Digital Display (Optional): Some variants include an LED display for monitoring voltage.
