BW16 RTL8720DN Module – KiCad Symbol, PCB Footprint, and 3D STEP File
BW16 RTL8720DN Module – KiCad Symbol, PCB Footprint, and 3D STEP File
This package provides the KiCad symbol, PCB footprint, and 3D STEP model for the BW16 RTL8720DN Wi-Fi + Bluetooth module, a powerful dual-band wireless solution based on the Realtek RTL8720DN chipset. The BW16 module supports both 2.4GHz and 5GHz Wi-Fi, along with dual-mode Bluetooth (Classic + BLE), making it an excellent choice for IoT, smart home, and embedded wireless applications.

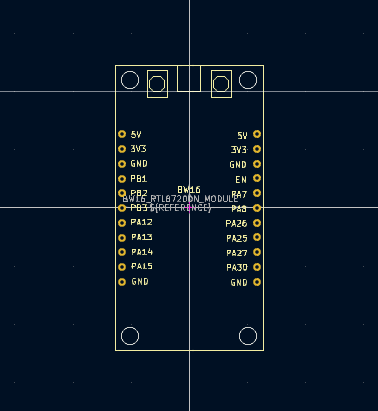

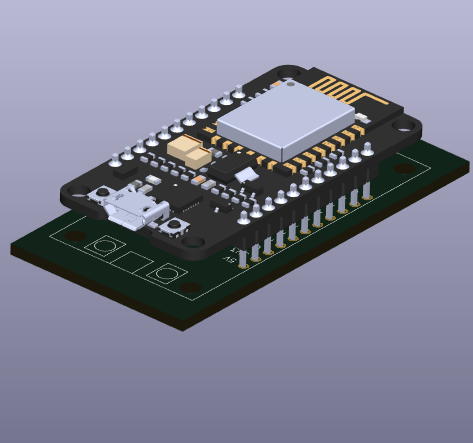

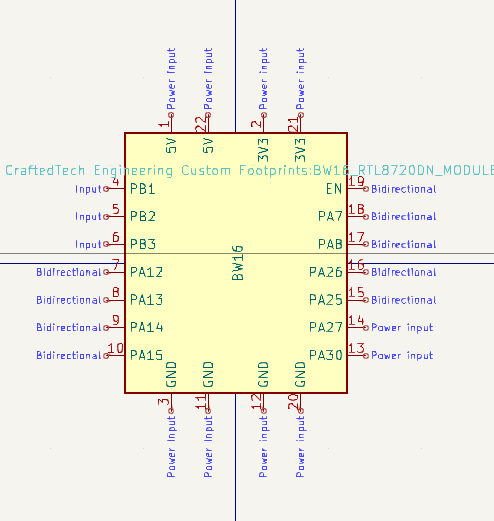

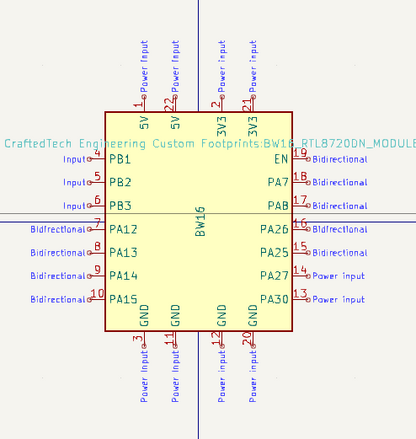

The KiCad symbol allows clean integration into your schematic design, while the footprint is carefully optimized for accurate PCB layout. The included STEP file provides a detailed 3D model for mechanical design, enclosure fitting, and placement verification in software such as Fusion 360, SolidWorks, and Altium.
This ready-to-use design package helps engineers, makers, and product developers save time and ensure accuracy when incorporating the BW16 module into custom hardware projects.
