Circuitrocks DIP Slide Switch
Circuitrocks DIP Slide Switch

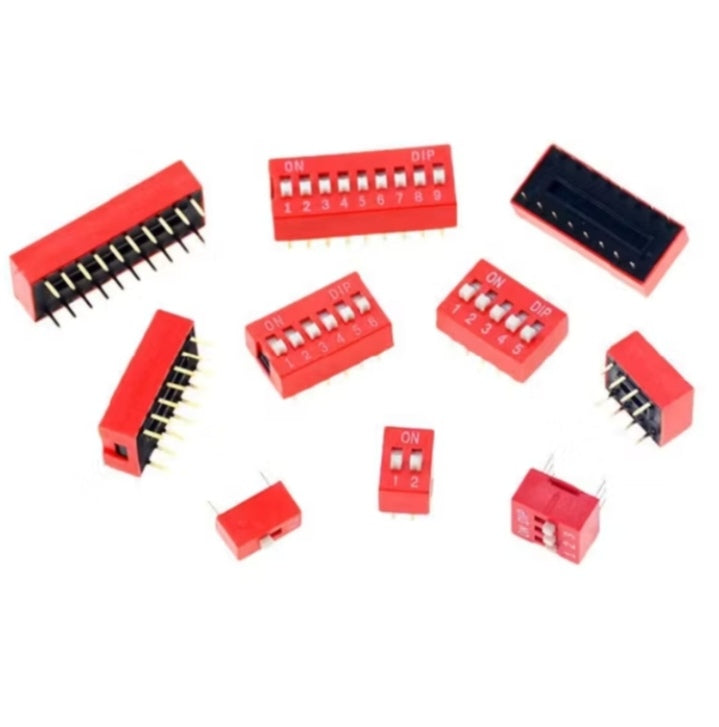

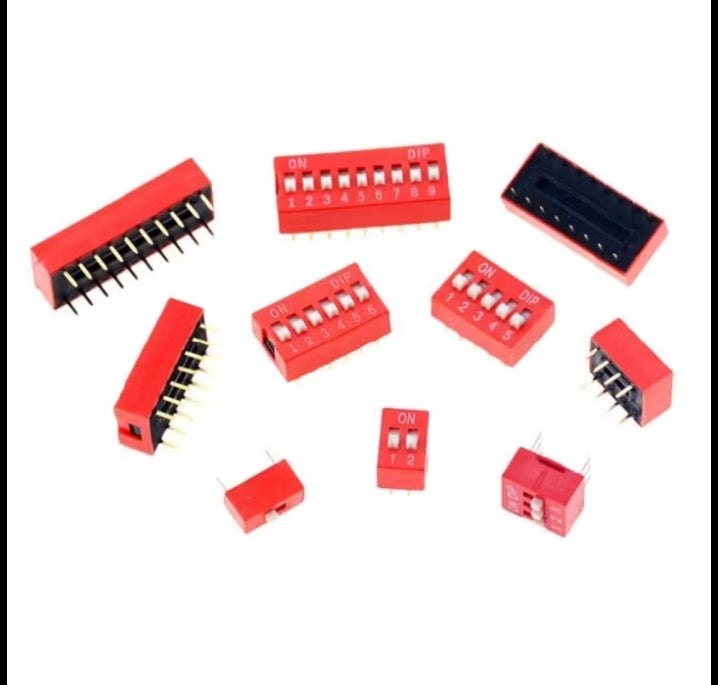

The Circuitrocks DIP Slide Type Switch is a compact and reliable switching solution designed for low-voltage digital circuits and configuration settings in microcontroller projects. Featuring a 2.54mm standard pin pitch and available in multiple position/way options (such as 2-way, 4-way, 8-way, etc.), this switch allows you to easily toggle between high and low logic states directly on your PCB or breadboard.
These DIP switches come in a pack of 5, housed in a bright red plastic casing for easy identification, with clearly defined toggles that provide a tactile feel. Compatible with Arduino, Raspberry Pi, and other development platforms, they are ideal for setting modes, selecting functions, or manually configuring circuit behavior without needing software changes.
Key Features:
Switch Type: DIP Slide Type Toggle Switch
Pin Pitch: 2.54mm (standard for breadboards and PCBs)
Positions: Multi-way (e.g., 2, 4, or 8 positions depending on version)
Color: Red housing with white toggles
Package Includes: 5 pieces
Mounting Style: Through-hole
Rated Voltage/Current: Typically rated for DC 24V / 25mA
Operation: Simple ON/OFF (binary) switching for each position
Compatibility: Fully compatible with Arduino, ESP32, STM32, and other microcontroller boards
