Yabo Intelligent Human Body Infrared Sensor Module – Pyroelectric PIR Motion Detection for Micro:bit & Arduino, PH2 Interface
Yabo Intelligent Human Body Infrared Sensor Module – Pyroelectric PIR Motion Detection for Micro:bit & Arduino, PH2 Interface

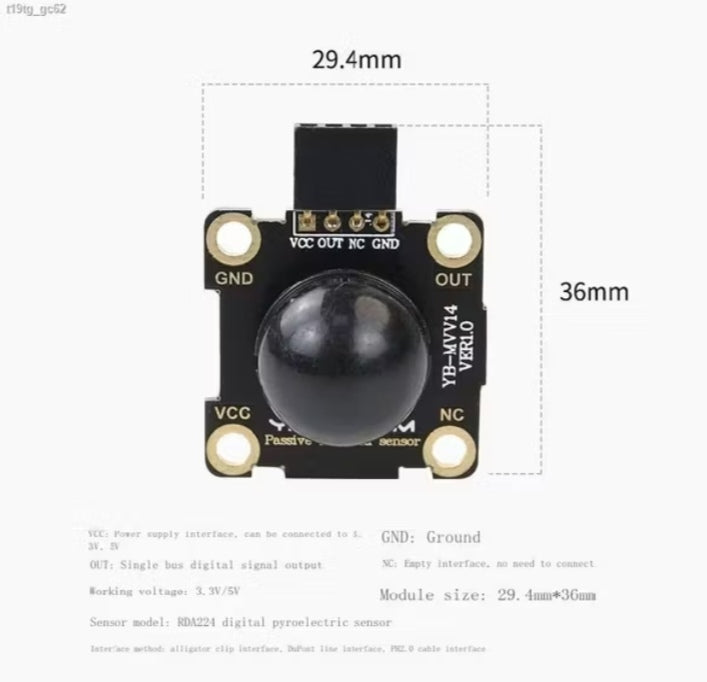

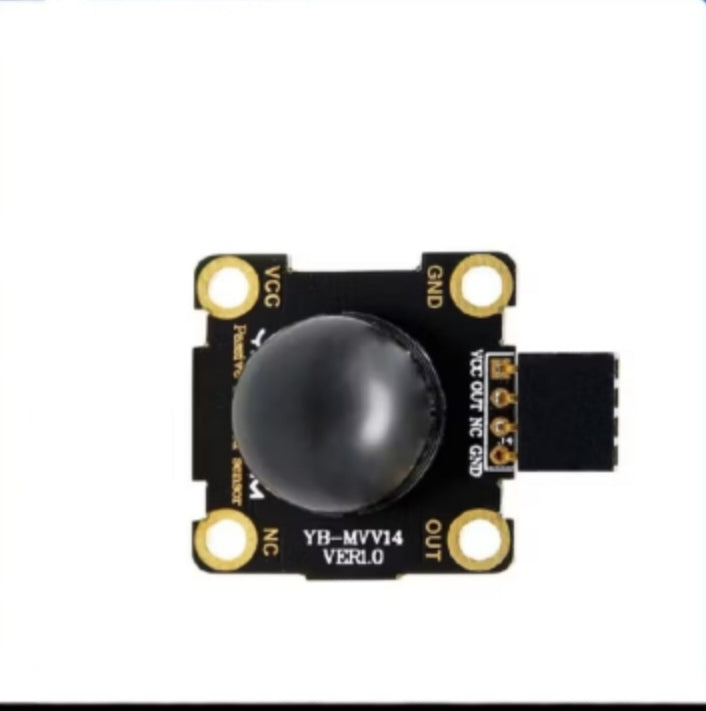

Yabo Intelligent Human Body Infrared Module is a compact and highly sensitive pyroelectric infrared (PIR) motion sensor designed for detecting human movement. Compatible with Micro:bit, Arduino, and other microcontroller platforms, this module is perfect for DIY electronics, smart home automation, security systems, and interactive projects.
🔧 Key Specifications:
Sensor Type: Pyroelectric Infrared (PIR)
Detection Range: Typically up to 3–5 meters
Detection Angle: ~100°
Operating Voltage: 3.3V – 5V DC
Interface: PH2.0-3P connector
Output Type: Digital (High when motion is detected)
Compatibility: Micro:bit, Arduino, Raspberry Pi, and other MCU platforms
PCB Size: Compact and space-efficient design
⚙️ Key Features:
✅ Human Motion Detection – Accurately senses body movement within range
✅ Low Power Consumption – Energy-efficient and ideal for battery-powered applications
✅ Wide Application Compatibility – Works seamlessly with Micro:bit, Arduino, and STEM education kits
✅ Stable Performance – Reduced false triggering with built-in signal filtering
✅ Easy to Use – Simple 3-pin PH2.0 interface for plug-and-play connectivity
✅ Small Form Factor – Ideal for compact projects or enclosures
