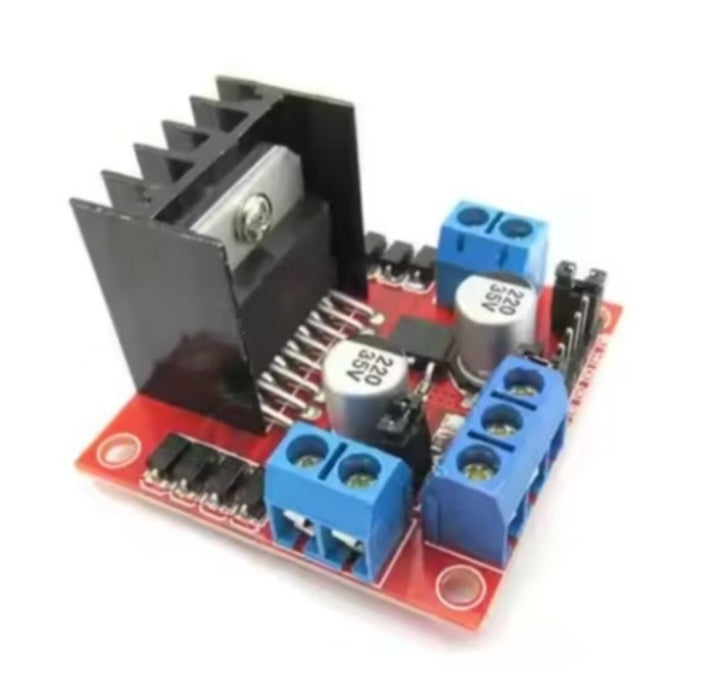

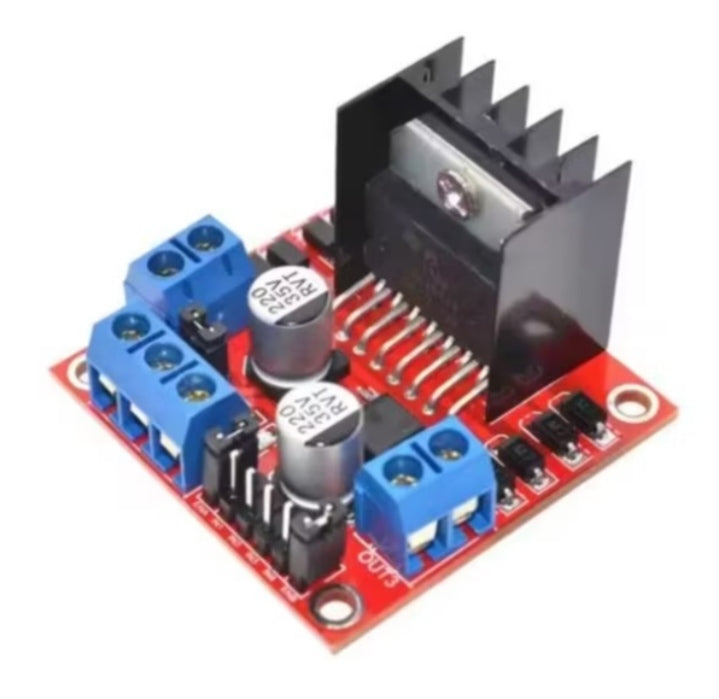

Dual H-Bridge Motor Driver Module is a powerful and reliable motor control board designed to drive two DC motors or one stepper motor with independent speed and direction control. Built around the L298N IC, this module is ideal for smart robot projects, automation systems, and DIY vehicles, providing smooth motor operation with high current output and built-in protection.
Compatible with Arduino, Raspberry Pi, ESP32, and other microcontrollers, the module can handle up to 2A per channel and supports a motor supply voltage of up to 35V, making it suitable for a wide range of motor types.
Key Features:
Driver IC: L298N Dual H-Bridge Motor Driver
Motor Support:
Drives 2 DC motors or 1 stepper motor
Independent control of direction and speed
Operating Voltage:
Motor Supply: 5V–35V
Logic Supply: 5V
Current Output: Up to 2A per channel (with heat sink)
Control Interface:

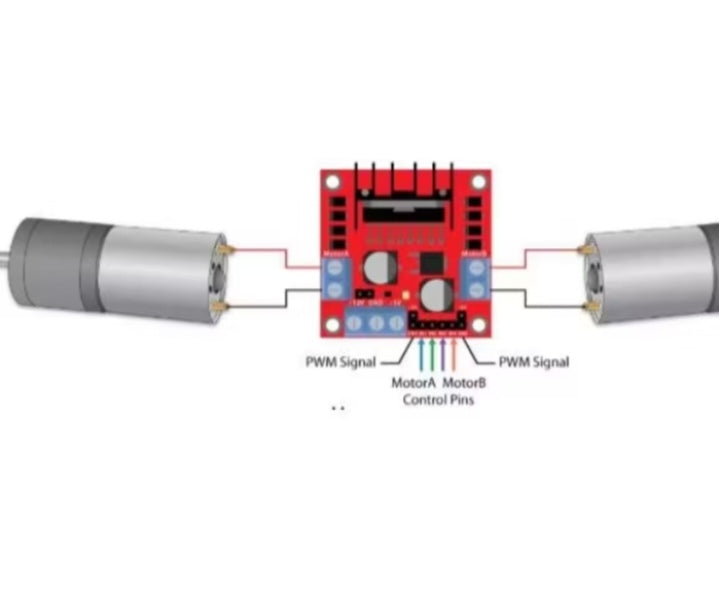

IN1, IN2, IN3, IN4 for direction control
ENA, ENB for speed control (PWM)
Built-in 5V Regulator: Can power logic circuitry (jumper enabled)
Protection Features: Overheat and overcurrent protection
Heat Sink: Pre-installed for stable performance during continuous operation
Mounting Holes: Easy to integrate into robotics chassis or project enclosures
