Flame Sensor Module – Dual Analog and Digital Flame Detection Sensor for Arduino and Robotics Projects
Flame Sensor Module – Dual Analog and Digital Flame Detection Sensor for Arduino and Robotics Projects

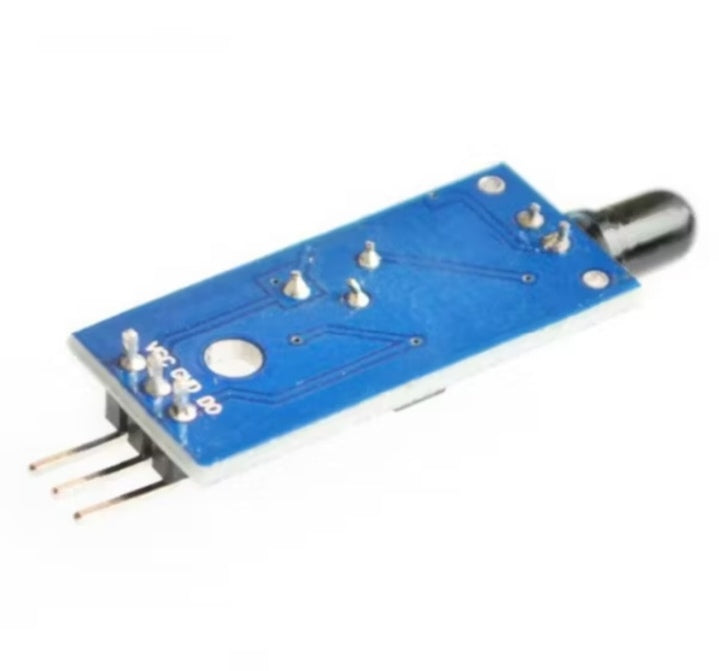

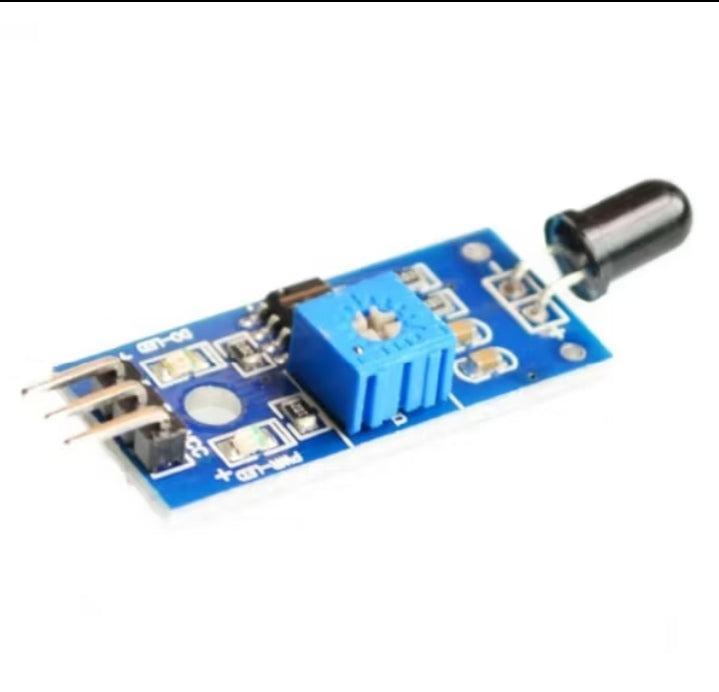

The Flame Sensor Module is a high-sensitivity flame detection module capable of identifying flame and fire sources within a range of 760nm to 1100nm wavelength. Equipped with both analog and digital outputs, it offers flexibility for different microcontroller-based applications, such as fire detection systems, safety alarms, and robotics. Whether you're building a fire-aware robot or a flame-activated safety system, this module is a powerful and easy-to-use solution.
Key Features:
Dual Output Modes:
Analog Output (AO): Provides a variable voltage based on flame intensity.
Digital Output (DO): Triggers a HIGH or LOW signal when the flame is detected within the threshold set by the onboard potentiometer.
Wavelength Range: Detects flame or light sources emitting infrared light in the 760nm to 1100nm spectrum.
High Sensitivity: Accurately detects flame up to a distance of 80cm to 100cm, depending on environmental conditions and flame size.
Adjustable Sensitivity: Onboard potentiometer allows you to fine-tune the detection sensitivity for different applications.
Indicator LEDs: Includes power and detection status LEDs for easy monitoring and testing.
Operating Voltage: 3.3V to 5V – compatible with Arduino, ESP32, Raspberry Pi, and other microcontrollers.
Compact and Durable: Lightweight, small form factor, and designed for easy integration into DIY or professional fire detection systems.
