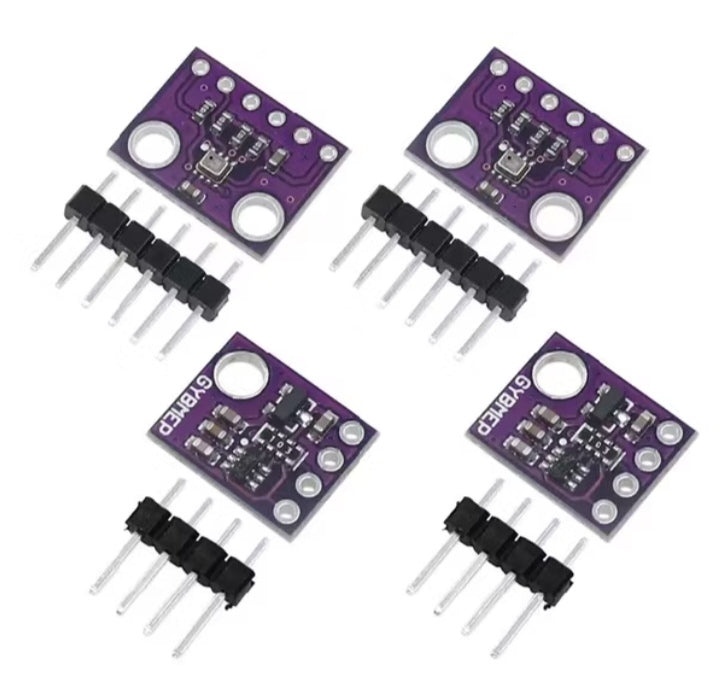

GY-BME280 / BMP280 Digital Sensor Module – Temperature, Humidity & Barometric Pressure Sensor with I2C/SPI Interface (1.8V–5V)
GY-BME280 / BMP280 Digital Sensor Module – Temperature, Humidity & Barometric Pressure Sensor with I2C/SPI Interface (1.8V–5V)
The GY-BME280 / BMP280 Digital Sensor Module is a high-precision environmental sensor capable of measuring temperature, humidity (BME280 only), and barometric pressure in a compact, low-power form factor. Designed with flexibility and accuracy in mind, it supports both I2C and SPI communication protocols, making it easy to integrate into a wide range of microcontroller projects including Arduino, ESP32, Raspberry Pi, and other development boards.
Whether you're building a portable weather station, a smart IoT device, or an altitude-tracking system, the GY-BME280/BMP280 sensor module delivers robust performance and multi-parameter sensing in a single package.
📦 Available Sensor Types:
BME280: Measures Temperature, Humidity, and Pressure
BMP280: Measures Temperature and Pressure (No Humidity)
🌡️ Key Features:
Multi-Parameter Environmental Sensing
BME280: Temperature: -40°C to +85°C (±1°C)
Humidity: 0–100% RH (±3%)
Pressure: 300–1100 hPa (±1 hPa)
BMP280: Temperature: -40°C to +85°C (±1°C)
Pressure: 300–1100 hPa (±1 hPa)
Wide Operating Voltage: 1.8V to 5V – fully compatible with both 3.3V and 5V systems

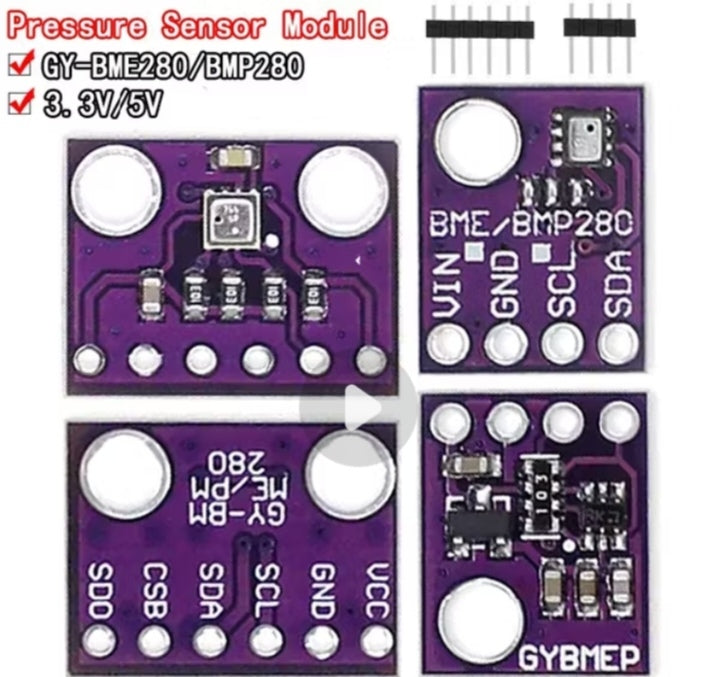

Communication Interfaces:
Supports both I2C (default address: 0x76 or 0x77) and SPI for versatile connectivity

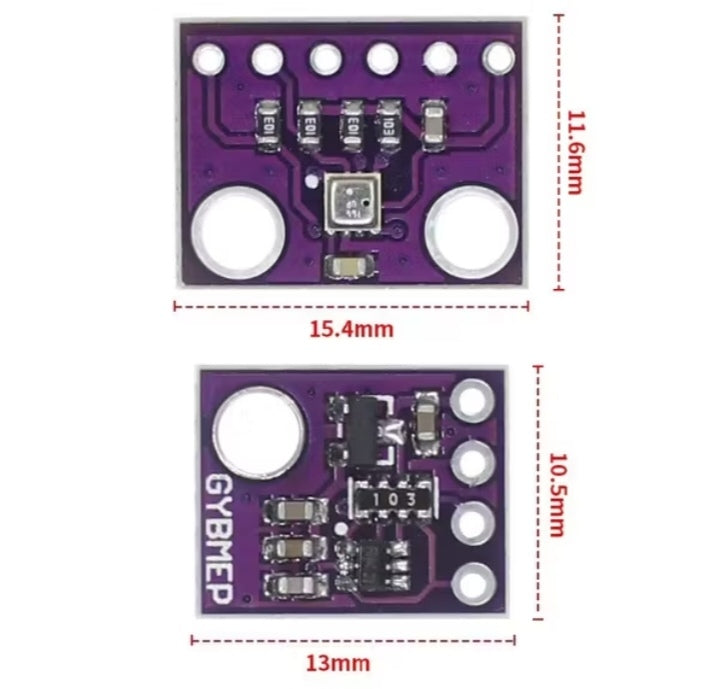

Compact GY-BME280 PCB Design: Ideal for space-constrained or embedded applications
Low Power Consumption: Great for battery-operated or low-energy applications
Fast Response Time: Real-time monitoring for environmental sensing systems
