Infrared IR Wireless Remote Control Module Kit (HX1838) – DIY Kit for Arduino and Raspberry Pi
Infrared IR Wireless Remote Control Module Kit (HX1838) – DIY Kit for Arduino and Raspberry Pi
The Infrared IR Wireless Remote Control Module Kit (HX1838) is a user-friendly and cost-effective solution for adding remote control functionality to your electronics projects. This DIY kit includes an IR receiver module and a compact 21-button IR remote control, making it ideal for controlling Arduino, Raspberry Pi, and other microcontroller-based applications.

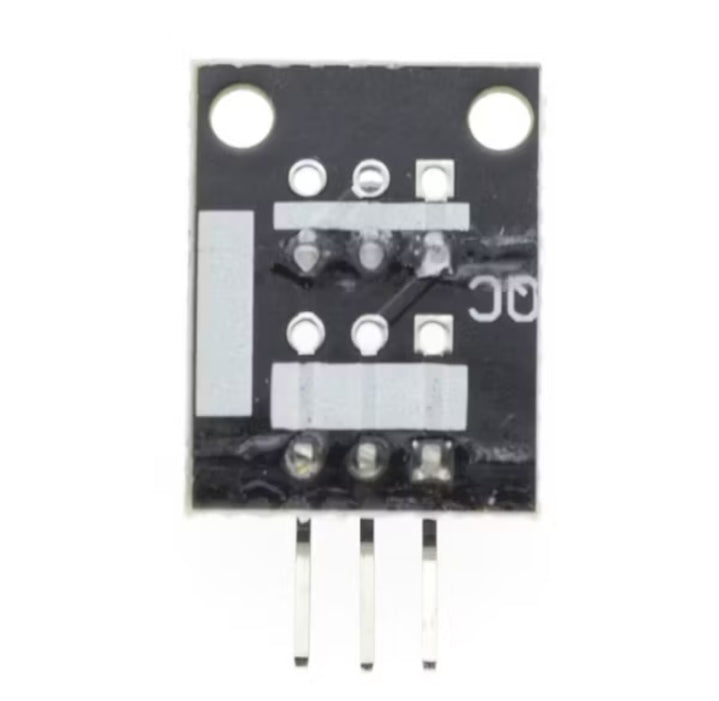

The included HX1838 IR receiver module is capable of detecting infrared signals from the remote at a distance of up to 8–10 meters, with high sensitivity and low power consumption. It features a standard 3-pin interface (VCC, GND, OUT) for easy integration with development boards. The included remote control uses the NEC protocol, a common format supported by most IR libraries for Arduino and similar platforms.
Key Features:

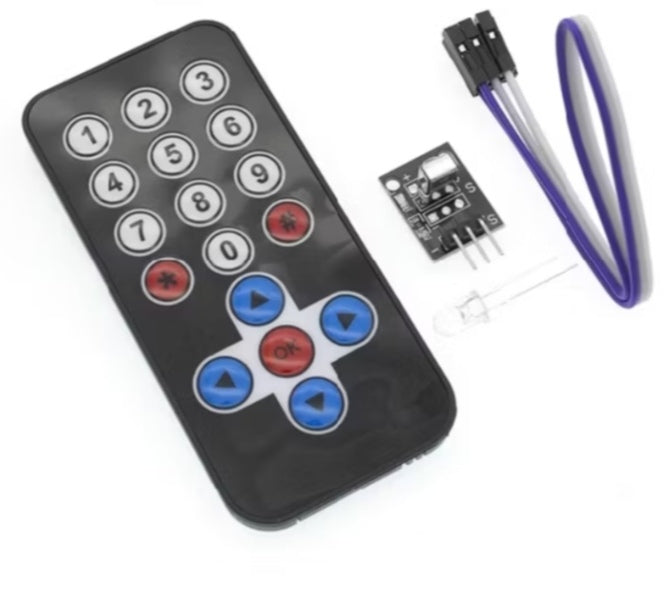

Complete DIY remote control kit with IR receiver and handheld remote
HX1838 IR receiver module with onboard indicator LED and filtering capacitor
21-key IR remote control with numeric and function buttons
Supports NEC protocol, widely compatible with open-source IR libraries
Receiver working voltage: 2.7V – 5.5V (ideal for Arduino/RPi)
Remote transmission distance: up to 8–10 meters
Compact module size with 3-pin header for plug-and-play connectivity
Simple to use with sample IR libraries and example codes
