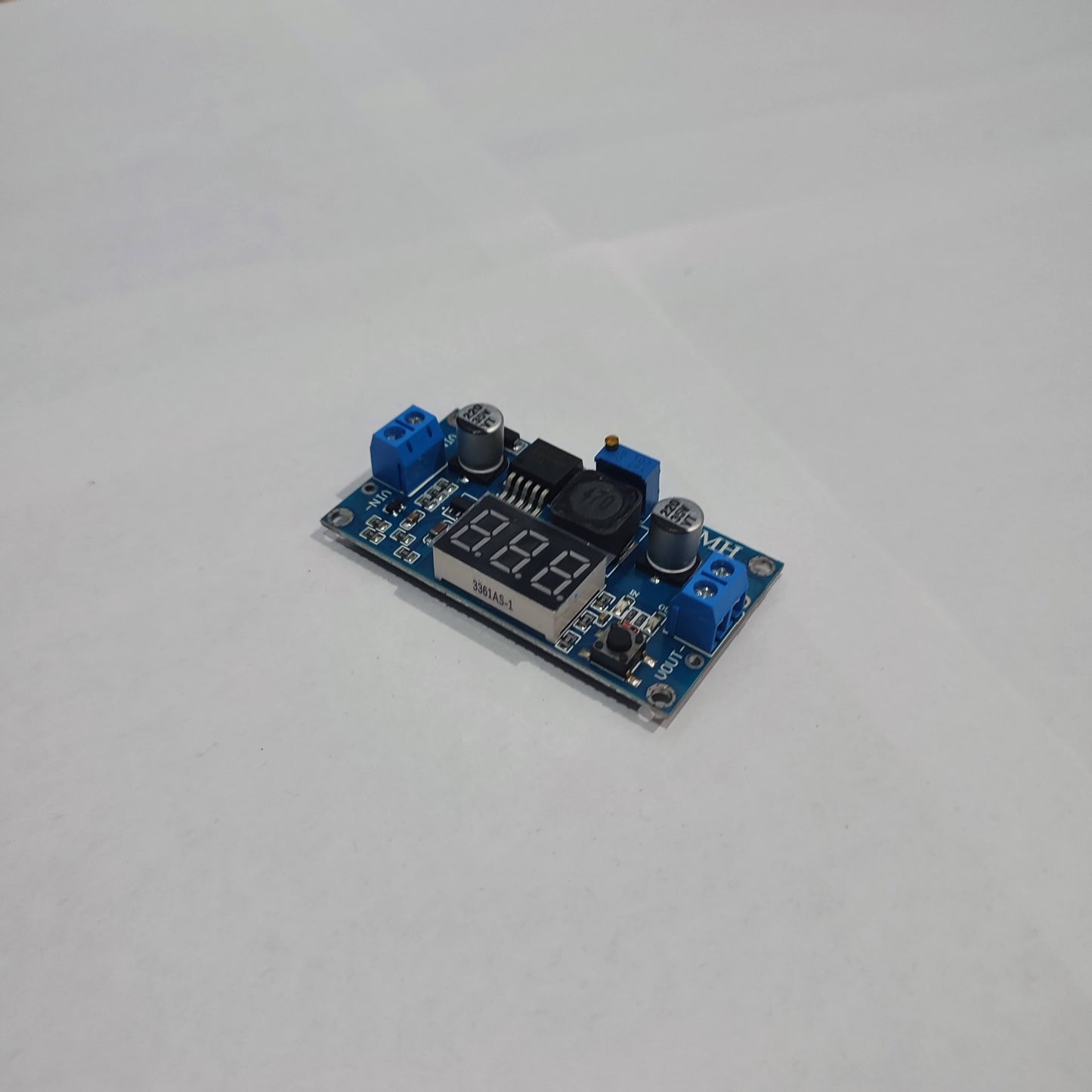

LM2596 LM2596S DC-DC Buck Step-Down Converter with 7-Segment Display
LM2596 LM2596S DC-DC Buck Step-Down Converter with 7-Segment Display
The LM2596 LM2596S DC-DC Buck Step-Down Converter is a high-efficiency voltage regulator designed to convert a higher DC voltage to a lower DC voltage, with a wide adjustable output range. This module is equipped with a 7-segment display, making it easy to monitor the output voltage in real time. Ideal for applications where stable and efficient voltage conversion is required, such as power supplies, electronics projects, solar systems, and battery-powered devices.
🔑 Key Features:
- ⚡ Wide Input Range – Supports 4V to 40V DC input with adjustable 1.25V to 37V output
- 📊 7-Segment Display – Easily monitor output voltage at a glance
- 🔧 High Efficiency – Converts voltage with high efficiency, reducing power loss
- 🛡️ Overcurrent Protection – Safeguards the module and connected devices from damage
- 🧑💻 Easy to Use – Simple wiring and adjustable output with potentiometer
- 🏷️ Compact Design – Suitable for various DIY projects, robotics, and more
📦 Specifications:
- Type: LM2596 DC-DC Step-Down Converter Module
- Input Voltage: 4V to 40V DC
- Output Voltage: Adjustable from 1.25V to 37V
- Output Current: Max 2-3A depending on input voltage
- Display: 7-Segment LED Display (displays output voltage)
- Efficiency: Up to 90%
- Protection: Overcurrent and overheat protection
- Mounting: PCB mountable, easy integration into projects
💡 Applications:
- Power supplies for Arduino, Raspberry Pi, and other microcontrollers
- DIY electronics and robotics projects
- Solar power systems and battery-powered devices
- Charging circuits for various devices
- Power regulation for motors, LED lights, and other high-power devices
- Voltage regulation for audio equipment, sensors, and communication systems
