Matrix Membrane Keypad
Matrix Membrane Keypad

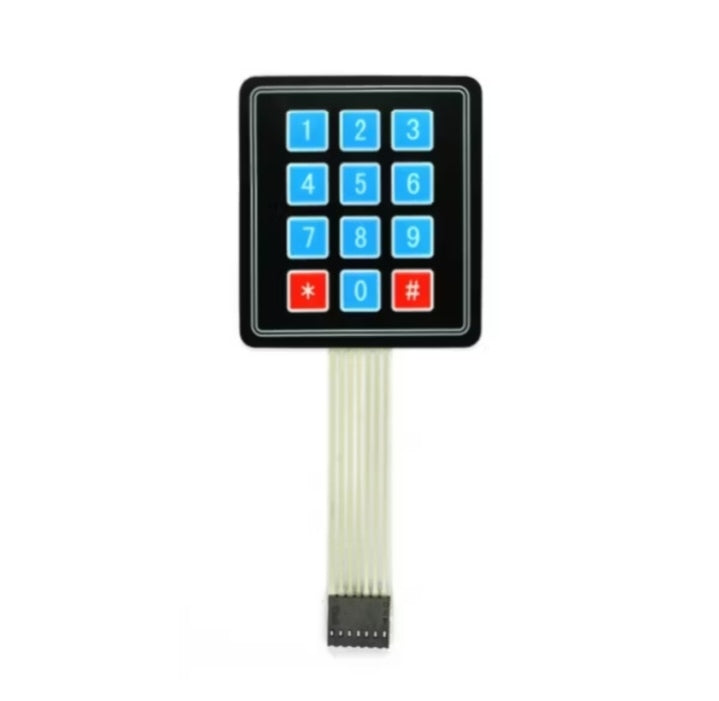

The Matrix Membrane Keypad is a thin, flexible, and highly durable input device designed for Arduino, Raspberry Pi, ESP32, and other microcontroller-based systems. Available in 3x4 (12 keys) and 4x4 (16 keys) configurations, this keypad uses a matrix layout that allows you to read multiple key inputs using just a few digital pins—ideal for space-efficient and cost-effective user interfaces.
Each button is clearly labeled and easy to press, with a sealed membrane surface that offers light water and dust resistance, making it suitable for everyday DIY, educational, and prototyping environments. The keypad also includes a flexible ribbon cable with a standard header and a peel-and-stick adhesive backing for effortless mounting on most surfaces.
Key Features:
Key Layout Options:
3x4 layout: 12 keys (0–9, *, #)
4x4 layout: 16 keys (0–9, A–D, *, #)
Button Type: Momentary membrane switches
Interface: Matrix-style (requires scanning)
Connection: Flexible ribbon cable with 7 or 8-pin female connector
Operating Voltage: 3.3V – 5V (fully compatible with Arduino and microcontrollers)
Material: Plastic film with printed overlay – ultra-thin and lightweight
Back Adhesive: Yes – for secure mounting
Durability: Rated for over 1 million key presses
Water Resistance: Splash-proof membrane design
