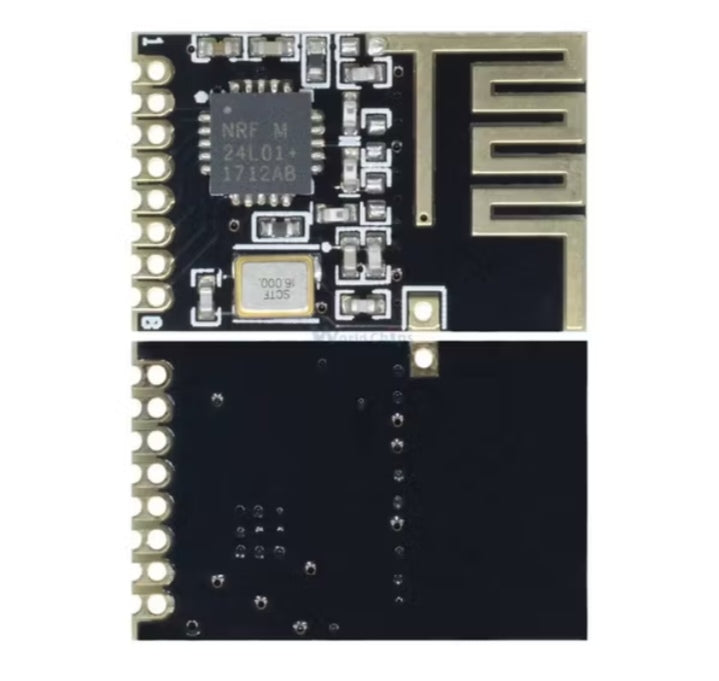

Mini Wireless Transceiver Module with Power Amplifier & LNA – Up to 1000m Range for Arduino
Mini Wireless Transceiver Module with Power Amplifier & LNA – Up to 1000m Range for Arduino

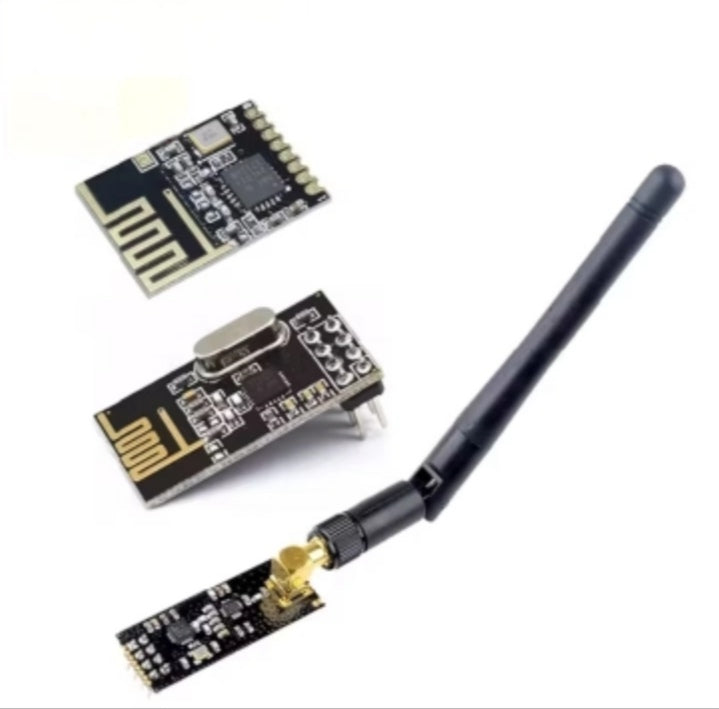

The Wireless Module is a powerful 2.4GHz transceiver designed for long-range, high-reliability wireless communication in Arduino and microcontroller projects. This enhanced version of the popular NRF24L01 module integrates a Power Amplifier (PA) and Low Noise Amplifier (LNA), significantly extending its transmission range up to 1000 meters in open space.
Compact yet highly efficient, this module is ideal for point-to-point or mesh communication networks in DIY electronics, IoT projects, and remote control systems. It uses SPI (Serial Peripheral Interface) for easy integration and offers stable, low-power wireless data transmission with low latency and high data rates (up to 2Mbps).
Key Features:
Transceiver Chip: Nordic Semiconductor NRF24L01+
Frequency: 2.4GHz ISM band (2400–2525 MHz)
Extended Range: Up to 1000 meters (line of sight, open area)
Power Amplifier (PA): Boosts signal strength for long-distance transmission
Low Noise Amplifier (LNA): Improves signal reception and sensitivity

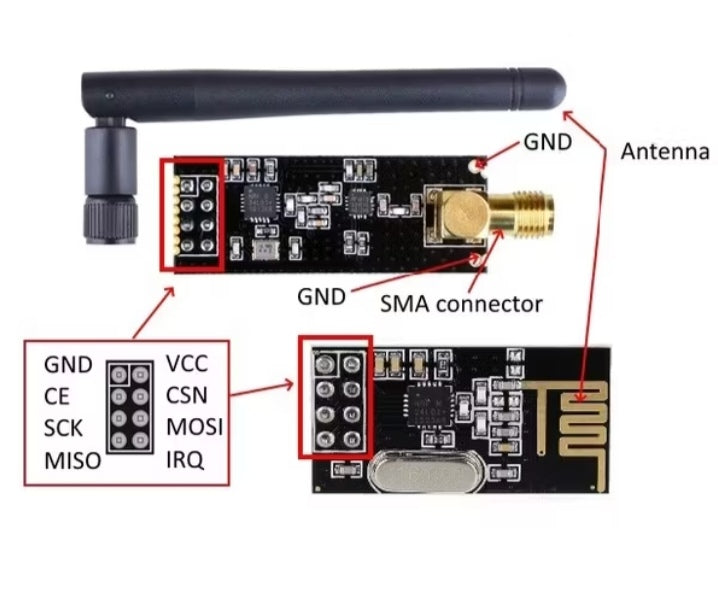

Built-in SMA antenna interface (antenna not included)
Communication Interface: SPI, easy to use with Arduino, STM32, ESP32, and more
Data Rate Options: 250kbps, 1Mbps, 2Mbps
Power Supply: 3.3V (with onboard voltage regulation)
Compact Form Factor: Suitable for space-limited applications
