Mini Panel Push Button Switch – 2-Pin 1A Momentary Waterproof Reset Switch
Mini Panel Push Button Switch – 2-Pin 1A Momentary Waterproof Reset Switch

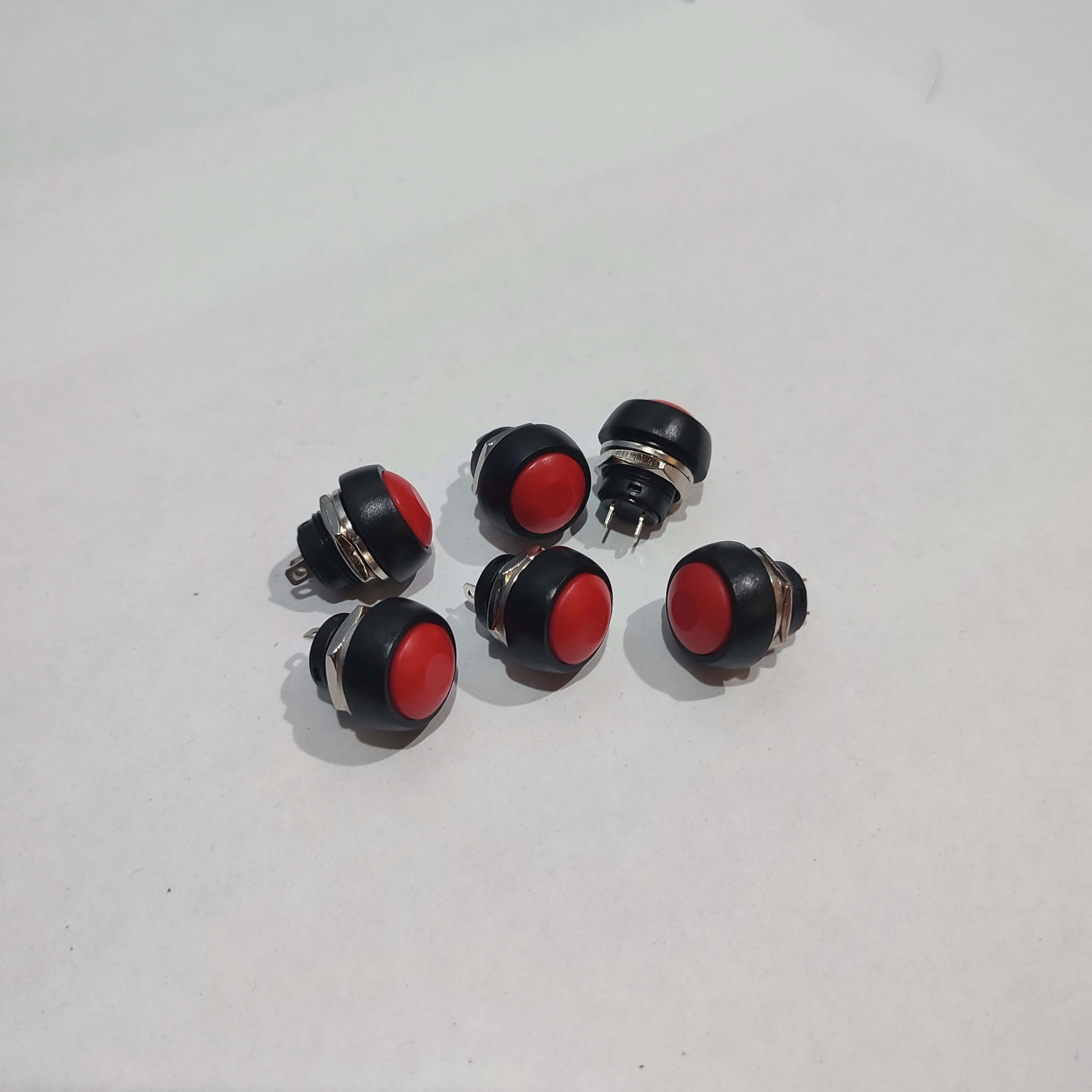

This Mini Panel Momentary Push Button Switch is a compact and durable component ideal for electronics, automation, and control projects. With a 2-pin design and rated at 1A, it provides a momentary contact action—meaning the circuit is only active while the button is being pressed. Its water-resistant design makes it suitable for light outdoor or rugged environments.
⚙️ Key Features:
- ✅ Momentary Action (Reset Type) – Press to activate, release to break connection
- 💧 Waterproof Design – Suitable for use in damp or light outdoor conditions
- 🔌 2-Pin Configuration – Simple connection for fast integration
- 🔧 Panel Mountable – Clean, secure fit into enclosures and panels
- 🔋 Rated for 1A @ 250V AC / 125V AC – Great for low-power control applications
📦 Specifications:
- Type: Momentary Push Button (Normally Open)
- Mounting: Panel Mount
- Pin Count: 2
- Current Rating: 1A
- Voltage Rating: 250V AC / 125V AC
- Material: Plastic + metal
- Waterproof: Yes (light splash-resistant, not submersible)
- Action Type: Push-to-make (returns to normal when released)
💡 Applications:
- Arduino or Raspberry Pi input control
- DIY electronics and robotics
- Access control panels
- Alarm systems
- Instrument or tool reset switches
- Home automation triggers
