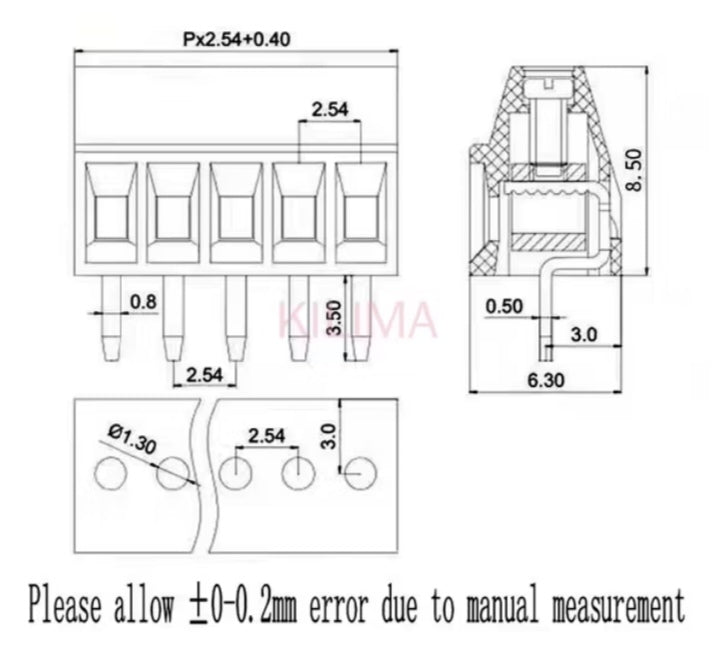

Mini Screw Terminal Blocks are compact, high-quality terminal connectors designed for secure wire-to-board connections in a variety of electronic and electrical applications. These terminal blocks feature a 2.54mm pitch, making them perfect for standard PCBs and prototyping boards, especially in low-voltage signal and control wiring systems.
Available in a wide range of pin configurations — including 2P, 3P, 4P, 5P, 6P, 7P, 8P, 9P, 10P, 12P, and 16P — these terminal blocks are perfect for modular setups. The screw clamp design ensures a firm grip on wires without the need for soldering, allowing for quick, easy, and reusable connections.
Key Features:
Model: KF128-2.54
Pitch: 2.54mm (standard PCB pitch)
Available Configurations: 2P to 16P (choose according to application)
Mount Type: PCB through-hole mount
Wire Connection: Screw-type terminals for easy wire insertion and removal
Material: Flame-retardant plastic housing with nickel-plated brass contacts
Current Rating: Typically up to 5A (varies by wire gauge and number of positions)
Voltage Rating: Up to 250V
Temperature Range: -40°C to +105°C
Durability: Reusable, vibration-resistant, and reliable mechanical connection
