Mini SIM800L GSM GPRS Module – Ultra-Compact Quad-Band MicroSIM Card Core Board with TTL Serial Interface for Arduino and IoT Projects
Mini SIM800L GSM GPRS Module – Ultra-Compact Quad-Band MicroSIM Card Core Board with TTL Serial Interface for Arduino and IoT Projects

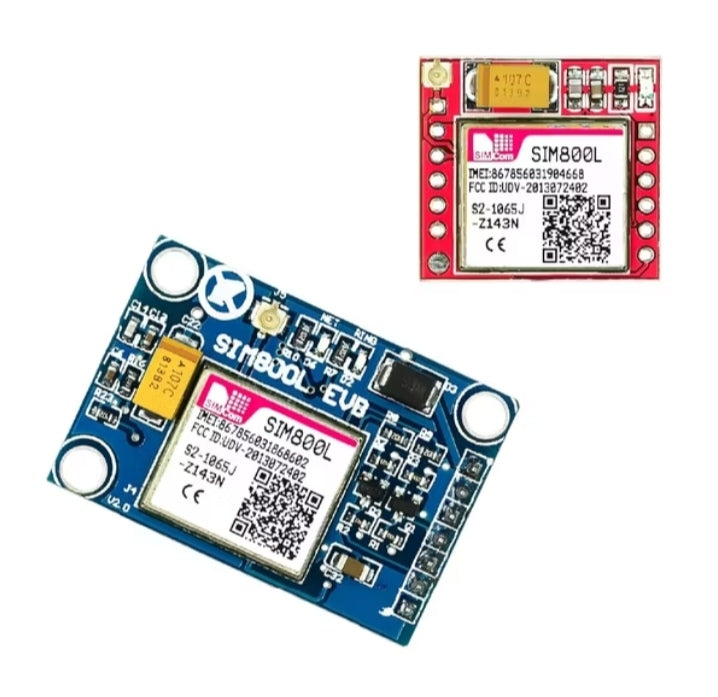

The SIM800L GSM GPRS Module is an ultra-compact and powerful cellular communication module that enables your microcontroller projects to connect to GSM networks for voice, SMS, and GPRS data transmission. Based on the SIM800L chipset, this core board supports quad-band frequencies (850/900/1800/1900MHz), ensuring global GSM compatibility.
Designed with minimal footprint, this is one of the smallest GSM modules available, making it ideal for space-constrained IoT applications, such as remote monitoring, smart tracking, home automation, and wireless data transmission.
It features a MicroSIM card slot, onboard network status LED, and communicates via TTL-level serial interface (UART), allowing seamless integration with Arduino, ESP8266, ESP32, STM32, and other 3.3V logic-level microcontrollers.
Key Features:
Module: SIM800L Core Board
Frequency Bands: Quad-band 850/900/1800/1900MHz (works worldwide)
SIM Type: MicroSIM Card
Network Support: GSM, GPRS (2G)
Functions Supported:
Voice call and SMS messaging
GPRS for mobile data
TCP/IP and HTTP communication
Control Interface: TTL Serial (UART) – AT command set compatible
Baud Rate: Configurable, default 9600 bps
Power Supply Voltage: 3.7V–4.2V (recommended 4V, 2A for stable operation)
Logic Level: 2.8V (safe for 3.3V microcontrollers, use a level shifter for 5V boards)
Onboard Components:
MicroSIM card holder
Network LED indicator

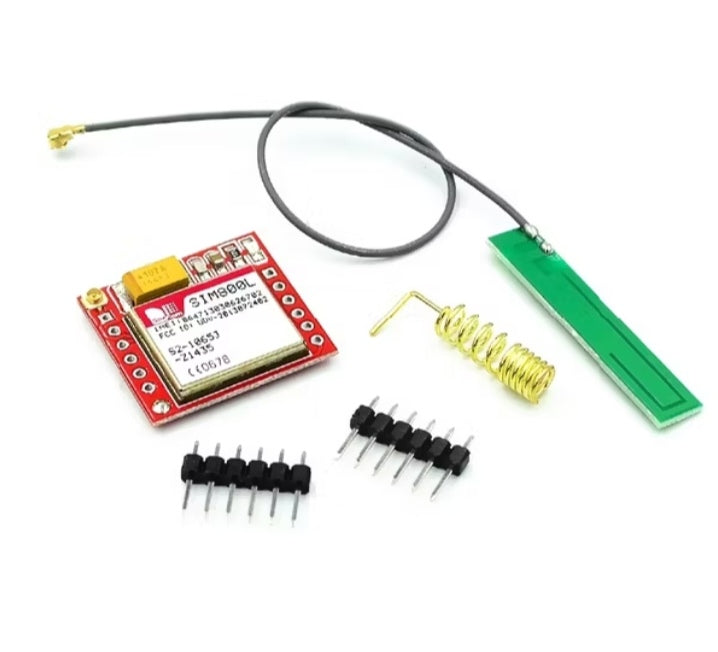

Antenna interface (external antenna required for better signal reception)
