Mini Slide Switch Set
Mini Slide Switch Set

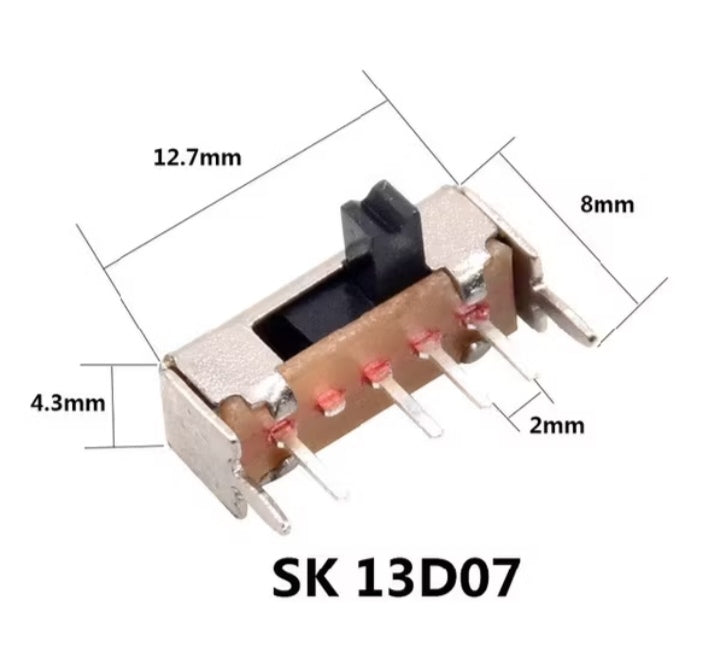

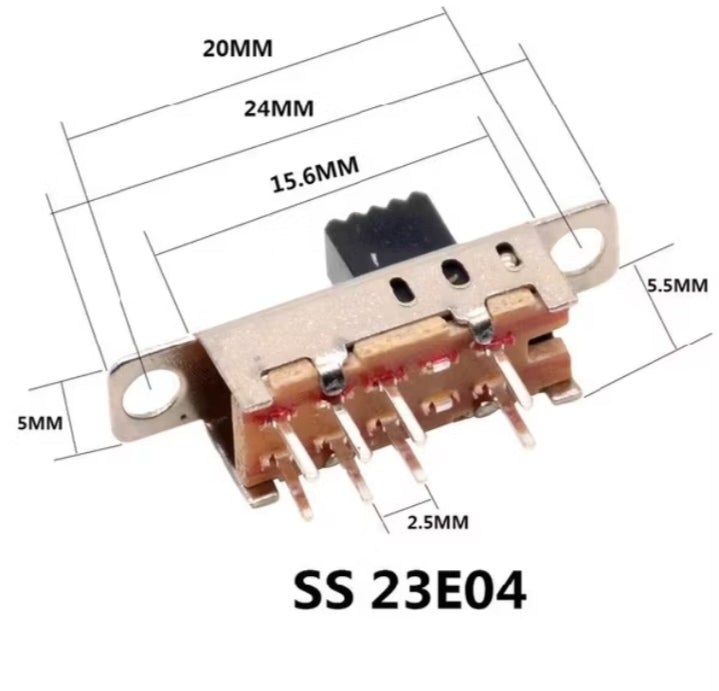

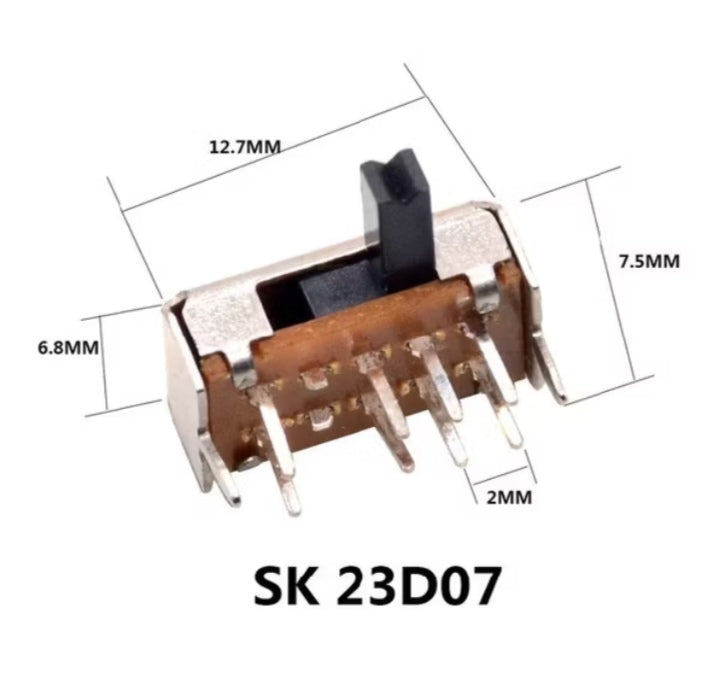

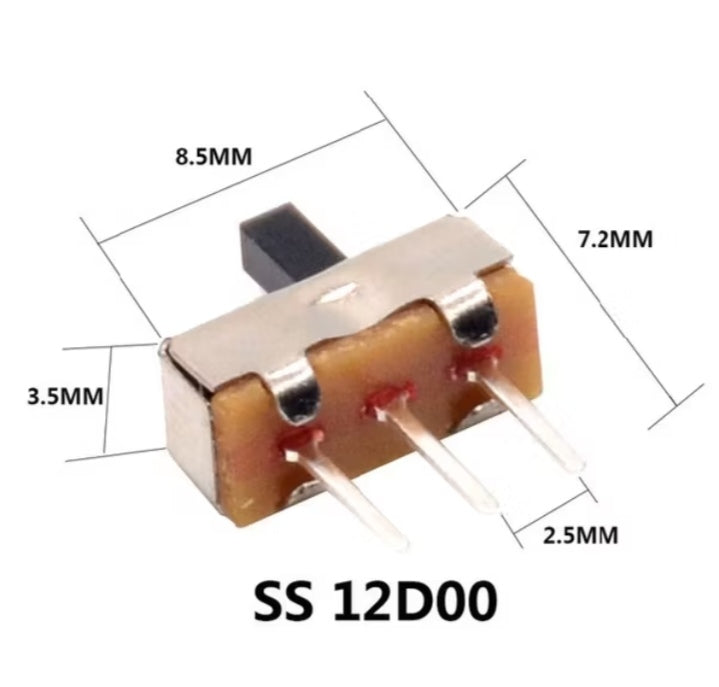

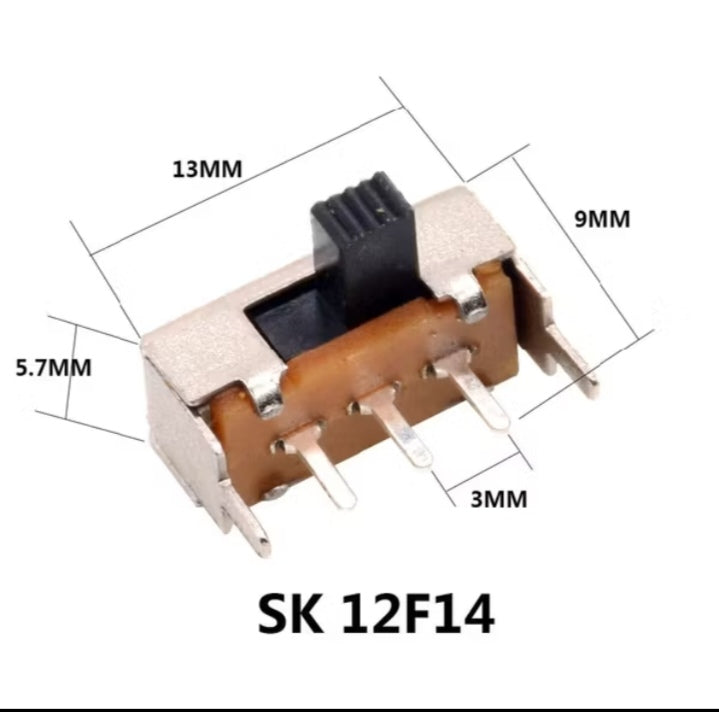

This 20-piece SS-12D00 Slide Switch Set is a versatile collection of miniature slide switches designed for a wide range of electronic applications. Featuring 2-position (2-file) and 3-position (3-file) configurations, as well as single-pole and double-pole variations, these switches are ideal for toggling power, changing modes, or switching signal lines in compact projects.
These horizontal slide switches are engineered for PCB or panel mounting, making them perfect for Arduino projects, power supply units, DIY electronics, and control panels. Their small form factor and smooth sliding mechanism ensure reliable and long-term operation in low-voltage DC circuits.
Key Features:
Model: SS-12D00 Series

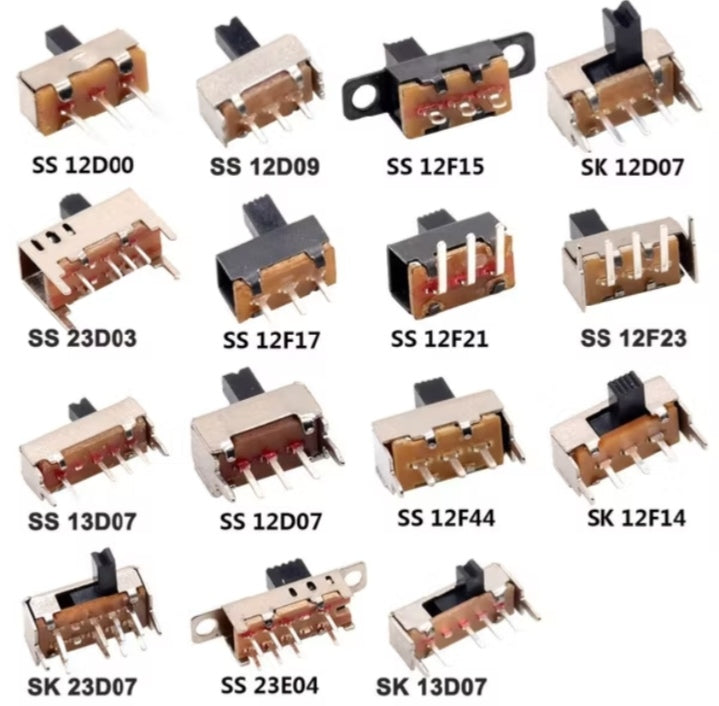

Quantity: 20 pcs (mixed types may include 2/3-position, single/double pole)
Switch Type: Slide switch with stable toggle positions
Positions:
2-position (ON-ON)
3-position (ON-OFF-ON)
Poles: Single-pole and double-pole options included
Mounting Style: Horizontal (miniature) – suitable for side mounting on PCBs
Operating Voltage/Current: Typically rated for DC 12V / 0.5A
Terminal Type: 3-pin or 6-pin, depending on the switch type
Durability: Long mechanical life with smooth sliding feel
