Motor Driver Shield Module
Motor Driver Shield Module

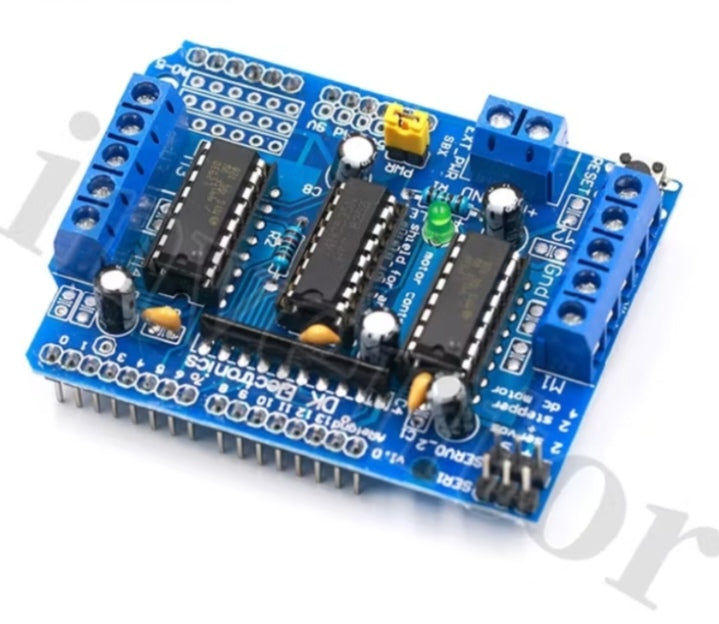

Motor Driver Shield Module is a versatile 4-channel motor control expansion board designed to easily integrate with Arduino UNO R3, Mega2560, and other compatible development boards. Powered by the L293D quadruple H-bridge motor driver IC, this shield can independently drive up to 4 DC motors or 2 stepper motors, making it ideal for robotics, automation, and motion control applications.
This shield plugs directly onto your Arduino board, eliminating the need for complex wiring. It also includes PWM speed control, direction control, and current protection. Additional features such as servo motor headers and external power support make it suitable for both beginner projects and more advanced multi-motor systems.
Key Features:
Motor Driver IC: L293D Quadruple Half-H Driver
Motor Support:
Drive up to 4 DC motors or 2 stepper motors
Speed and direction control for each motor
Operating Voltage:
Logic voltage: 5V (powered by Arduino)
Motor voltage: 4.5V to 36V (external power via terminal block)
Output Current: Up to 600mA per channel (peak 1.2A)
Control Interface:
Uses Arduino digital pins for motor control (with built-in logic)
PWM support via Arduino timers
