NPN Low Power Transistor
NPN Low Power Transistor

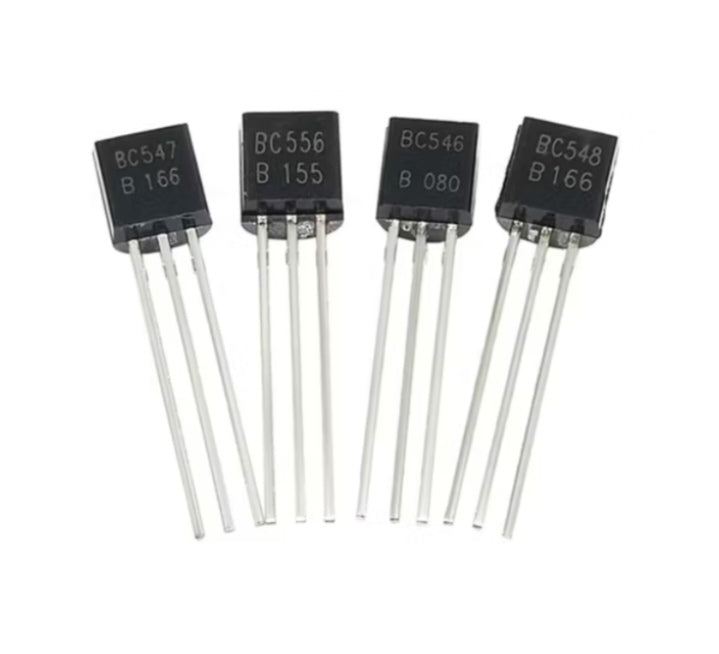

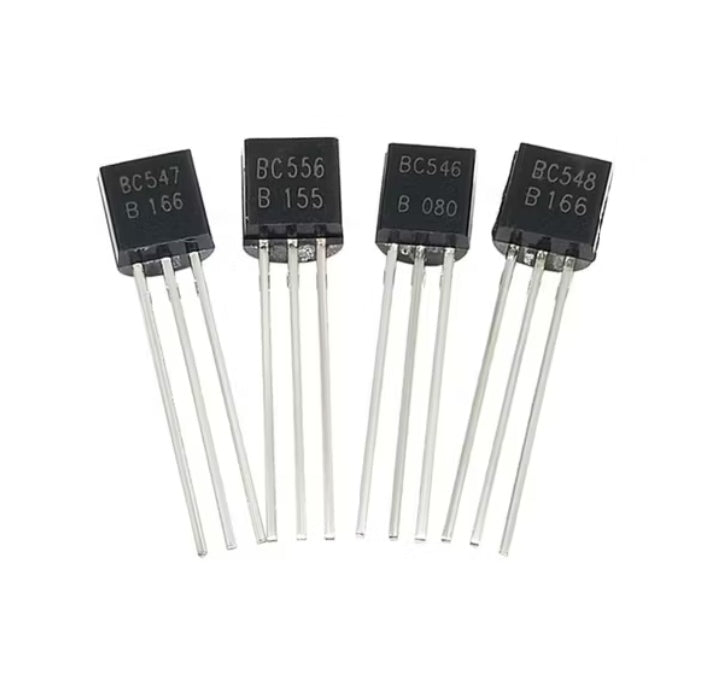

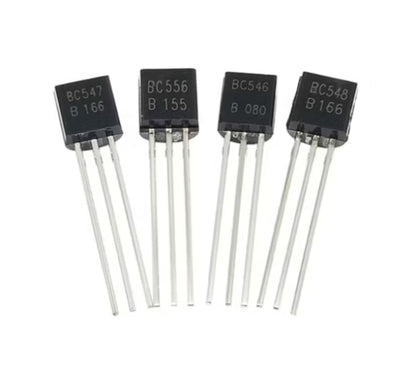

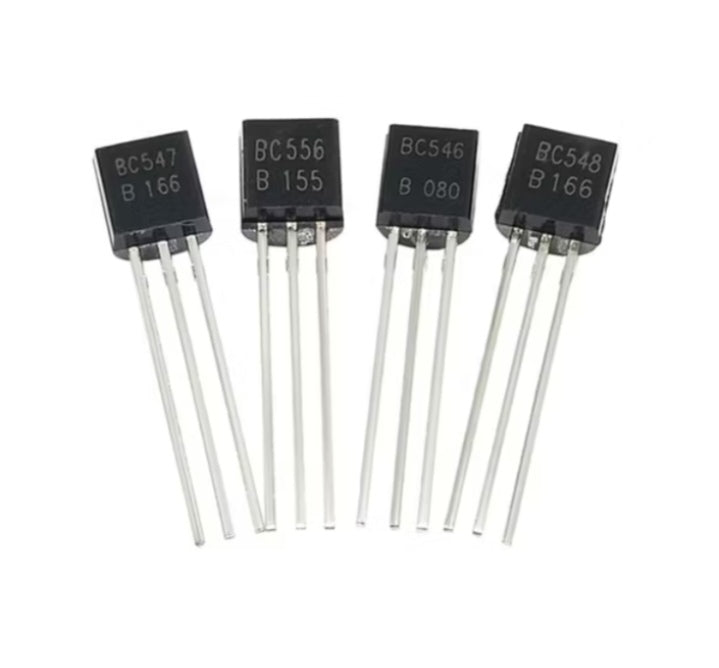

The NPN Low Power Transistor (3-Pin) is a compact and versatile semiconductor device designed for low-power switching and amplification tasks in electronic circuits. Ideal for use in logic-level switching, signal amplification, and general-purpose applications, this transistor is a must-have component for electronics hobbyists, students, and engineers.
With its standard three-terminal configuration—Collector (C), Base (B), and Emitter (E)—this NPN transistor is easy to integrate into breadboards and PCB circuits. It can be used in small signal amplifiers, LED drivers, motor control, and digital switching systems, operating efficiently within low voltage and current limits.
Key Features:
Type: NPN Bipolar Junction Transistor (BJT)
Low Power Consumption: Suitable for small-signal and low-current applications
Standard 3-Pin Configuration: Collector, Base, and Emitter for easy circuit design
Fast Switching Response: Ideal for logic-level control, microcontroller interfacing, and pulse applications
Versatile Use: Can be used in amplifiers, switches, and digital control circuits
TO-92 Package (or equivalent): Compact size for easy handling and installation
