Red Mushroom Cap Emergency Stop Push Button Switch – LAY37-11ZS, 1NO + 1NC, DPST
Red Mushroom Cap Emergency Stop Push Button Switch – LAY37-11ZS, 1NO + 1NC, DPST

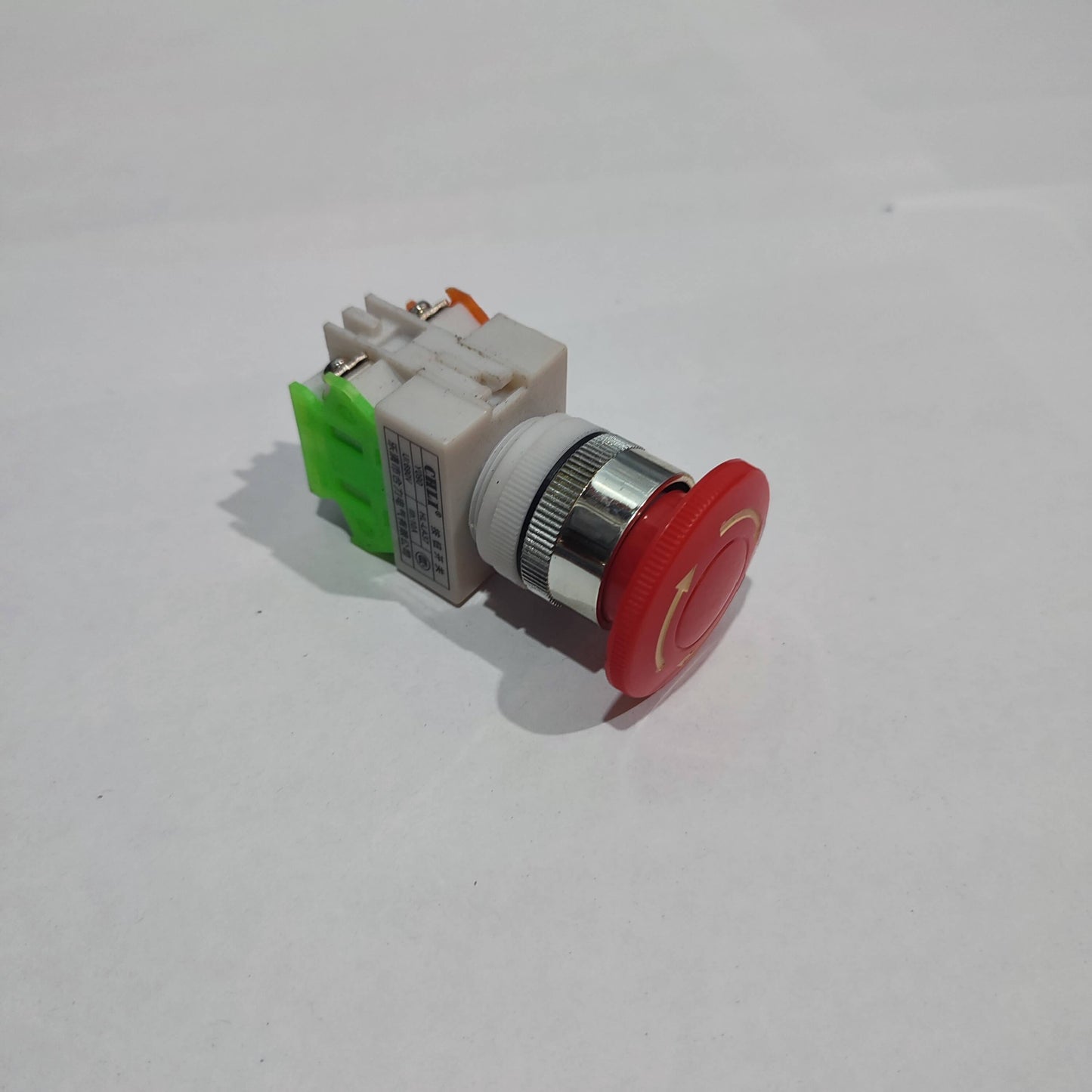

The LAY37-11ZS Emergency Stop Push Button is a high-quality DPST switch designed for safety-critical applications. Featuring a large red mushroom cap and a twist-release mechanism, it provides instant and reliable disconnection in emergency situations. This industrial-grade emergency stop switch includes both 1 Normally Open (NO) and 1 Normally Closed (NC) contact, making it compatible with a wide range of control systems.
⚙️ Key Features:
- 🛑 Mushroom Cap Design – Easy-to-press, high-visibility red actuator for quick emergency stops
- 🔄 Twist to Reset – Secure reset function to prevent accidental restarts
- 🔌 1NO + 1NC Contacts – Flexible wiring for safety systems, relays, and PLCs
- 🧰 DPST Configuration – Double-pole for added reliability and control separation
- 🏭 Industrial-Grade Build – Durable housing, ideal for machines, conveyors, automation panels
📦 Specifications:
- Model: LAY37-11ZS
- Contact Configuration: 1NO + 1NC (Double Pole Single Throw)
- Action Type: Latching – Push to stop, twist to release
- Rated Voltage/Current: 660V / 10A
- Mounting Hole Diameter: 22mm
- Cap Type: Red Mushroom (Momentary Emergency Stop)
- Material: Flame-retardant plastic + metal contacts
- Standards: CE compliant
💡 Applications:
- Emergency stop systems in industrial machines
- Control panels and automation equipment
- DIY CNC, robotics, or vending machines
- Safety controls in power distribution systems
- Resettable lock-out mechanisms for electrical circuits
