RGB LED Module
RGB LED Module

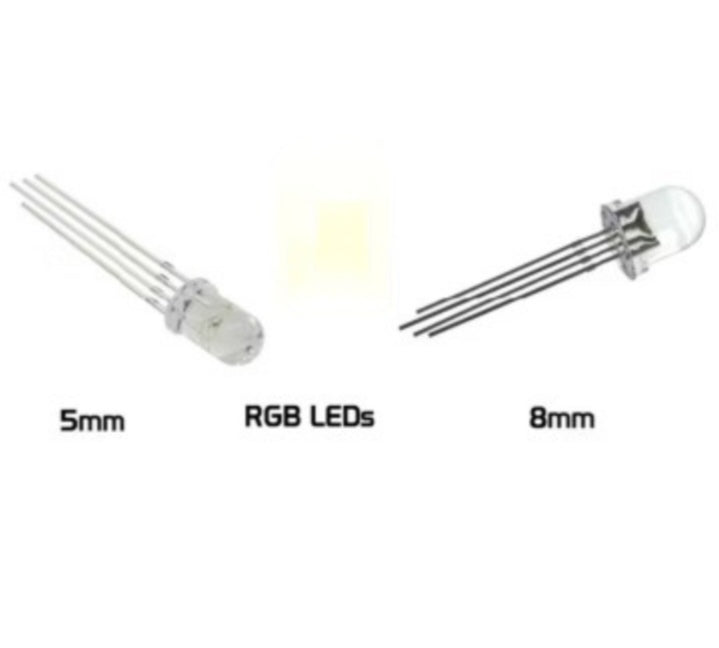

Add dynamic multicolor lighting to your electronics projects with this RGB LED Module, available in 5mm, 8mm, and 10mm sizes. Featuring 4 pins and supporting either common anode or common cathode configurations, this LED combines Red, Green, and Blue emitters into a single package, allowing you to create millions of colors through PWM control.
Choose between diffused for smooth color blending or clear lens for sharper, more focused light. This RGB LED is fully Arduino compatible, making it a versatile lighting solution for mood lights, indicators, animations, or any DIY RGB effects.
Key Features:
Available Sizes: 5mm, 8mm, 10mm
LED Type: RGB (Red, Green, Blue in one LED)
Pin Count: 4-pin – one common pin + 3 color control pins

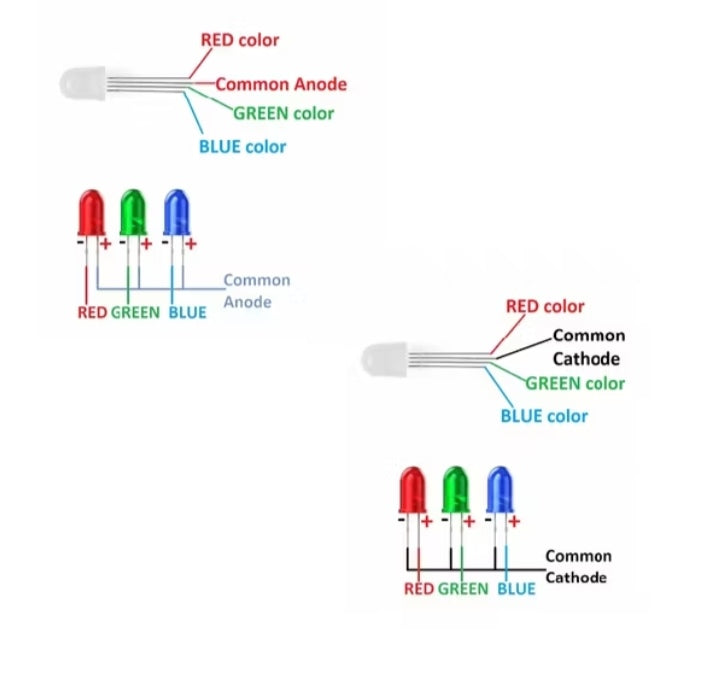

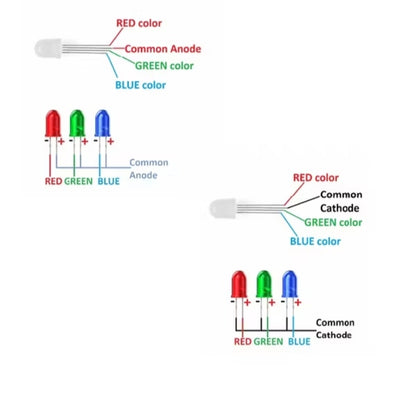

Polarity Options: Common Anode or Common Cathode

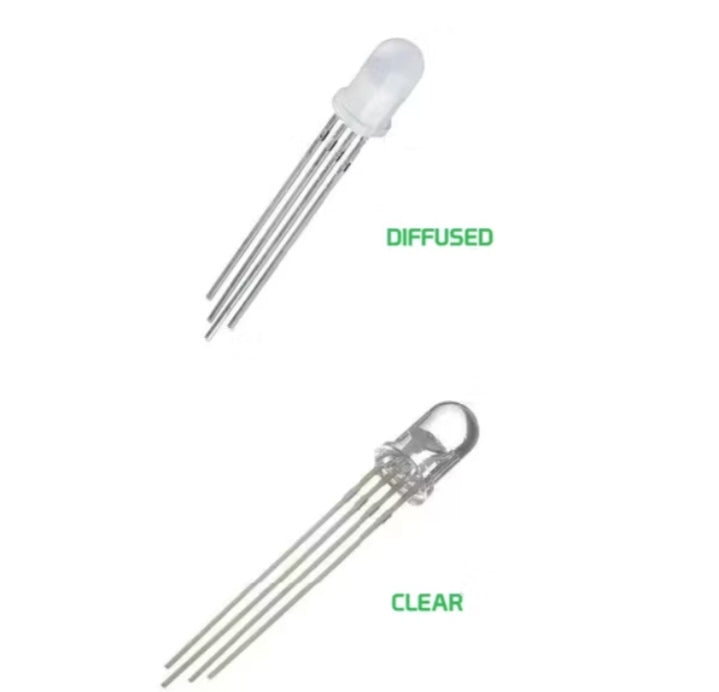

Lens Type: Available in diffused (soft glow) or clear (bright, focused)
Color Control: Achieve full RGB spectrum with PWM
Voltage Range per Channel: ~2.0V (Red), ~3.0V (Green/Blue)
Current: ~20mA per channel
Compatibility: Ideal for Arduino, Raspberry Pi, ESP32, and other microcontrollers
