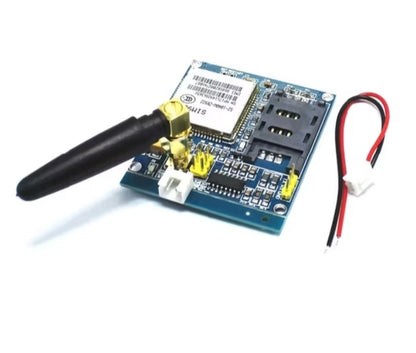

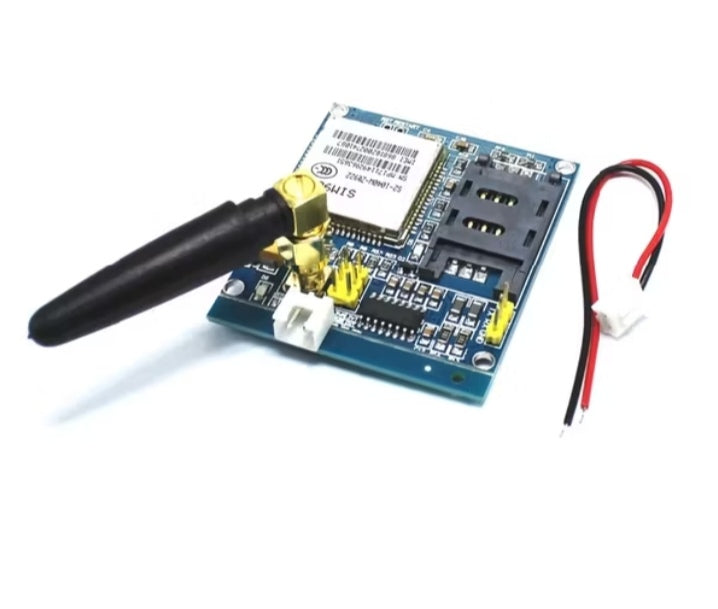

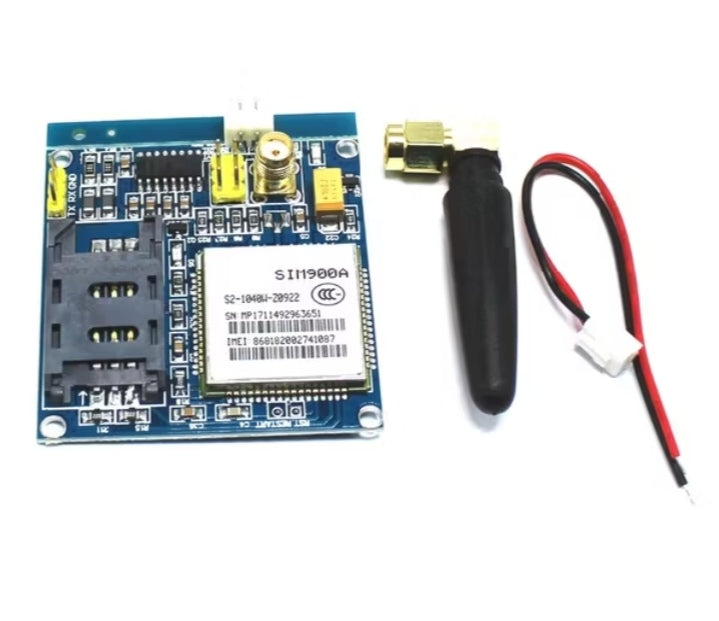

SIM900A GSM/GPRS Development Module – Wireless Communication Board for SMS, Voice, and Data Transmission with STM32, Arduino, and Microcontrollers

SIM900A GSM/GPRS Development Module – Wireless Communication Board for SMS, Voice, and Data Transmission with STM32, Arduino, and Microcontrollers

Regular price ₱180.00 PHP
Regular price Sale price ₱180.00 PHP
Sale Sold out

The SIM900A GSM Module Development Board is a reliable and feature-rich wireless communication solution designed for sending SMS messages, making voice calls, and transmitting GPRS data over GSM networks. Based on the SIMCom SIM900A chipset, this module supports dual-band GSM (900/1800MHz) and is ideal for IoT, automation, telemetry, and remote monitoring systems.

This fully integrated development board version includes essential components like voltage regulators, serial headers, SIM card holder, and antenna connectors, making it easy to integrate with STM32, Arduino, AVR, PIC, and other microcontroller platforms using standard AT commands via UART (TTL serial).

Key Features:

Module Chip: SIM900A by SIMCom

GSM Band Support: Dual-band 900/1800MHz (Asia, Africa, and selected regions)

Supported Functions:

Send/receive SMS

Make/receive voice calls

Transmit GPRS data (TCP/UDP/HTTP)

Control Interface: UART (TTL level, AT command set compatible)

SIM Card Slot: Standard SIM card support

Antenna Interface: External GSM antenna connector for strong signal reception

Operating Voltage: 5V input (regulated on-board)

Logic Level: 3.3V TTL (compatible with 3.3V microcontrollers; level shifting required for 5V logic)

Baud Rate: Default 9600 bps (configurable)

Status Indicators: Power and network status LEDs

Board Features:

Onboard voltage regulator and filtering

Reset and power buttons

Socket for external antenna

Easily breadboardable or mountable
