Single Row Female Header Socket – 2.54mm Pitch, 15-Pin (15P)
Single Row Female Header Socket – 2.54mm Pitch, 15-Pin (15P)

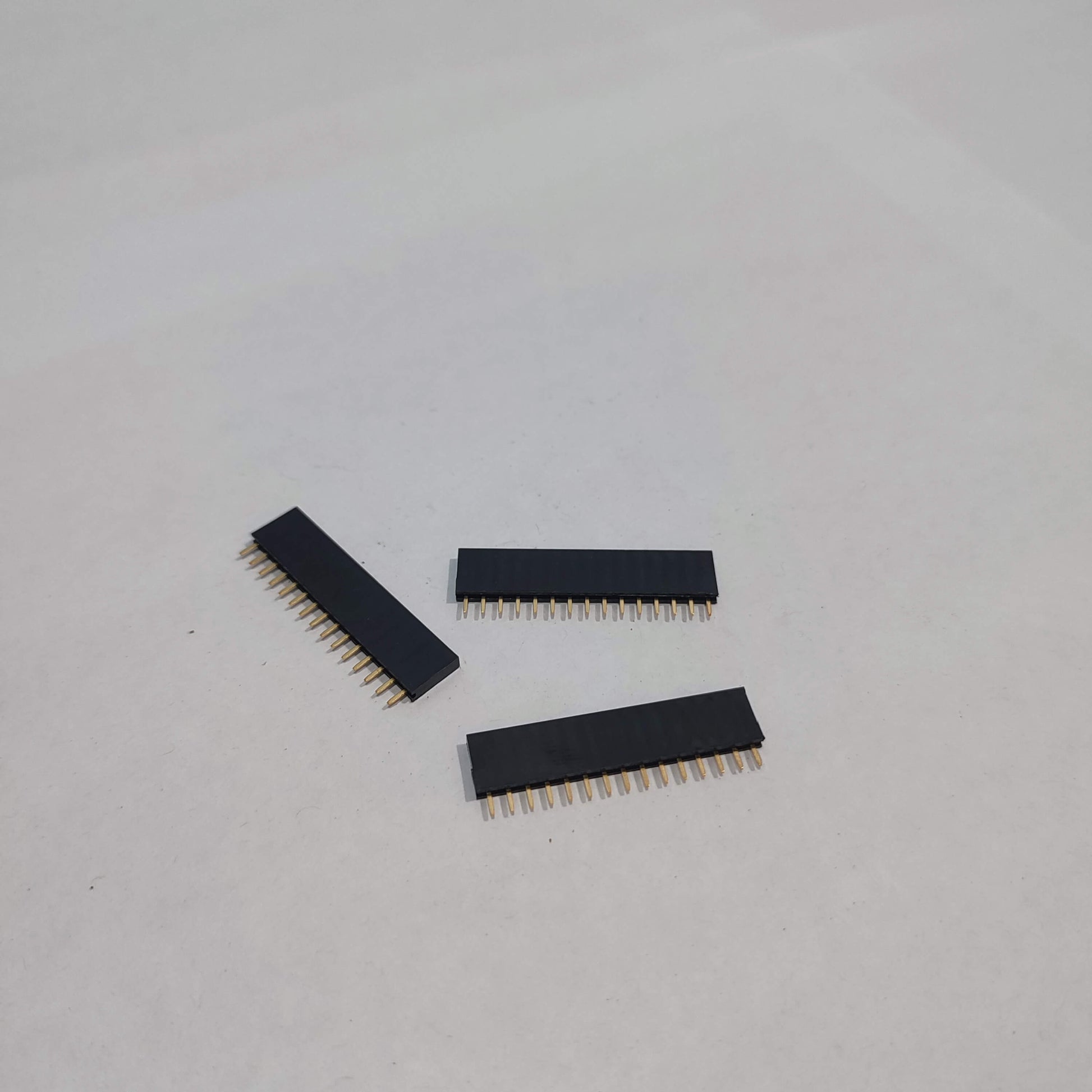

The 2.54mm Single Row Female Header Socket (15-Pin) is an essential component for connecting modules, sensors, and jumper wires to your custom PCBs and microcontroller projects. With a standard 2.54mm pitch, it’s compatible with Arduino, Raspberry Pi, ESP32, and other development boards. Perfect for prototyping or permanent installations, this header allows for easy plug-and-play connections.
⚙️ Key Features:
- ✅ 15-Pin Single Row Female Header – Ideal for GPIO expansion and interfacing
- 🔧 Standard 2.54mm Pitch – Breadboard and PCB compatible
- 🧩 Durable & Precise Fit – Firm grip on male headers or jumper wires
- 📏 Low-Profile Design – Space-efficient for compact PCB layouts
- 🔋 Solderable Through-Hole Pins – Secure and stable connections on any board
📦 Specifications:
- Type: Female Header Socket
- Number of Pins: 15
- Pitch: 2.54mm (0.1 inch)
- Mounting Type: Through-hole
- Material: Thermoplastic housing with brass contacts
- Compatible With: Arduino, ESP8266, Raspberry Pi, ESP32, custom PCBs
- Color: Black (common standard)
💡 Applications:
- Arduino and ESP32 shield interfaces
- Custom PCB module connections
- Sensor and jumper wire attachments
- Breadboard-to-PCB bridging
- Prototyping and electronics repair
