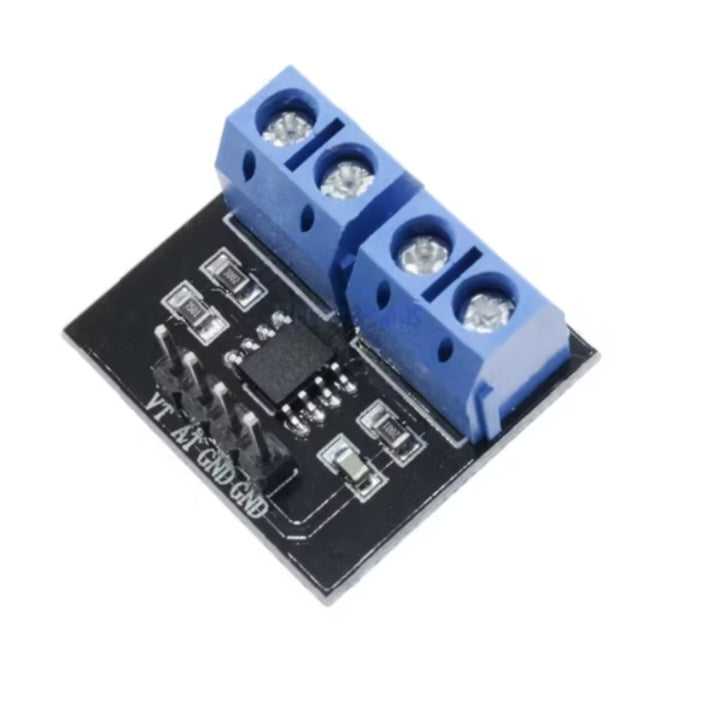

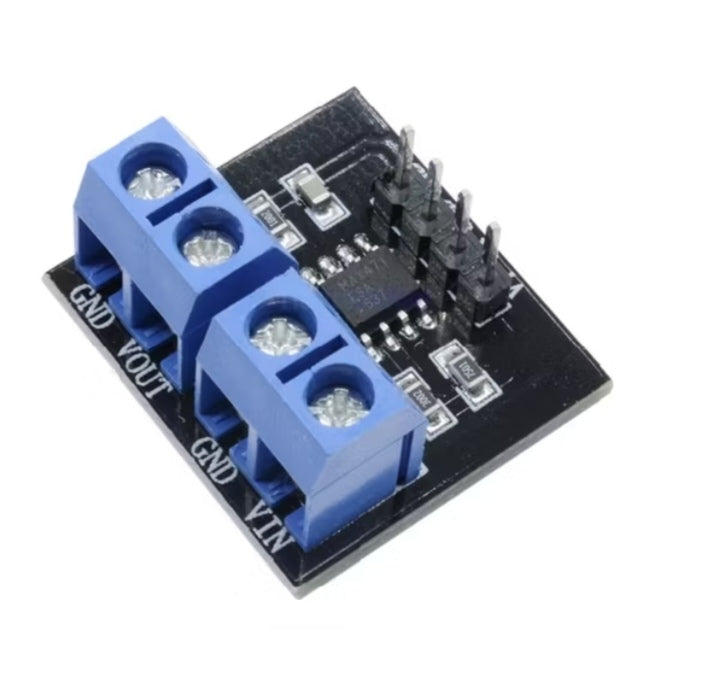

Voltage and Current Sensor Module
Voltage and Current Sensor Module
Voltage and Current Sensor Module is a compact and efficient measurement board designed to monitor both voltage and current in your DC-powered systems. Featuring the reliable MAX471 chip and a built-in resistive voltage divider, this module offers accurate real-time readings of current consumption and voltage levels, making it perfect for battery monitoring, power management, and energy consumption analysis.
Key Features:
Dual Measurement Capability: Simultaneously measures DC voltage and current in your circuit.
High-Precision Sensor: Based on the MAX471 IC, renowned for its accuracy in low-side current sensing.
Resistive Voltage Divider: Allows safe and scaled-down measurement of input voltage levels.
Wide Current Range: Can measure up to ±3A DC current directly.
Voltage Range: Compatible with typical low-voltage DC systems (input voltage typically up to 26V depending on resistor configuration).
Analog Output: Provides two separate analog outputs – one for current and one for voltage – easily read by microcontrollers like Arduino, ESP32, STM32, and more.
Compact Size: Ideal for embedded or space-constrained applications.
