XH-M609 12V–36V Low Voltage Battery Disconnect Protection Module – DC Output Power Cut-Off Controller
XH-M609 12V–36V Low Voltage Battery Disconnect Protection Module – DC Output Power Cut-Off Controller

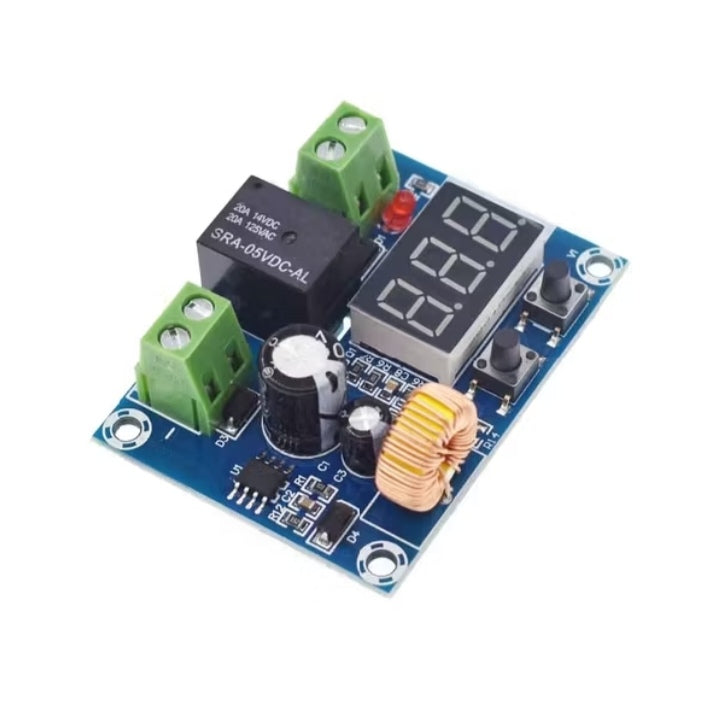

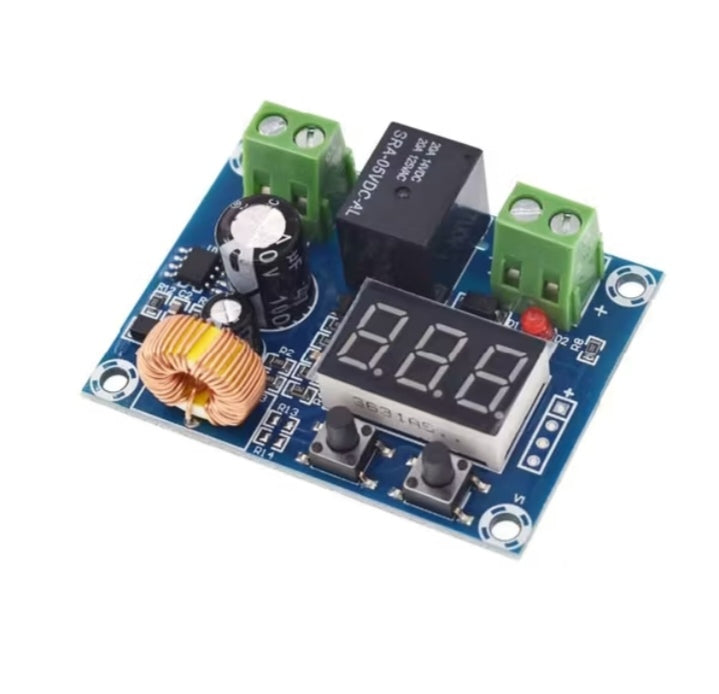

Protect your batteries from over-discharge with the XH-M609 Low Voltage Battery Disconnect Protection Module. Designed to automatically disconnect the load when the battery voltage drops below a set threshold, this intelligent module helps extend battery life and prevent deep discharge damage.
Operating within a 12V to 36V DC input range, the XH-M609 is ideal for use with lithium, lead-acid, and other rechargeable battery types commonly found in solar setups, RV systems, electric bikes, and DIY power banks. It features a fully adjustable voltage cutoff and reconnect threshold, allowing you to fine-tune it for your specific application.
When the battery voltage falls below the set low-voltage threshold, the module automatically cuts off the output load to protect the battery. Once the battery is recharged and reaches the recovery voltage, it automatically reconnects the load.
Key Features:
Wide Operating Voltage: Supports 12V to 36V DC battery systems
Low Voltage Protection: Automatically disconnects load to prevent over-discharge
Adjustable Settings: Customize cutoff and reconnect voltage thresholds
Digital LED Display: Shows real-time battery voltage and status

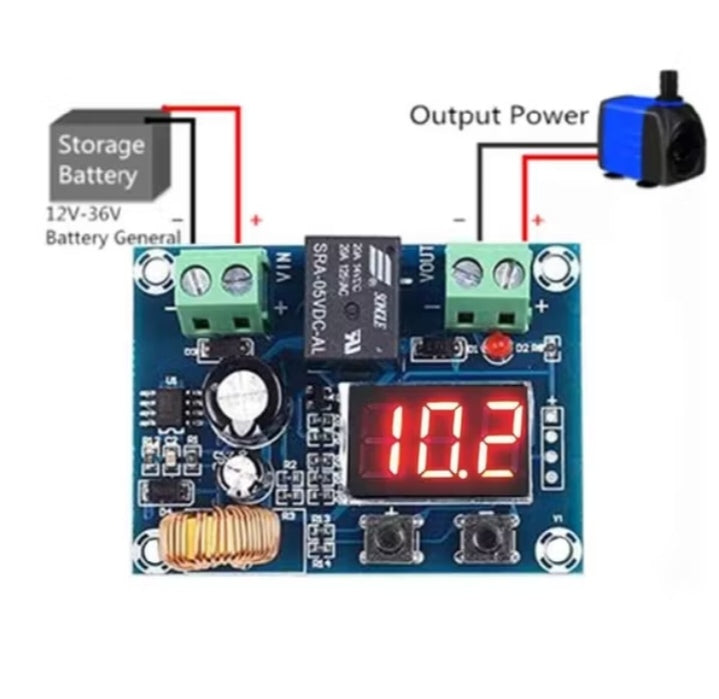

Simple Wiring: Easy to integrate into new or existing battery systems
Compact and Durable: Designed for long-term reliability in a variety of environments
